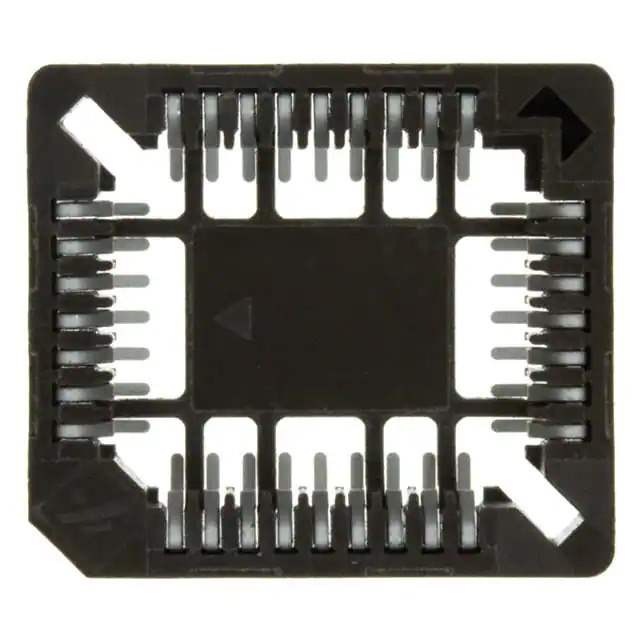

69802-132LF Real Image
Same model may have multiple batches, images only for reference.

69802-132LF

Part No 69802-132LF
Manufacturer Amphenol
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 32POS TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr Amphenol
Package Tube
Product Status Active
Type PLCC
Number of Positions or Pins (Grid) 32 (2 x 7, 2 x 9)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Surface Mount
Features Closed Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 150.0µin (3.81µm)
Contact Material - Post Phosphor Bronze
Housing Material Polyphenylene Sulfide (PPS)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number 69802
Standard Package 28 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848915-69802-132LF
Ultra Librarian 3D Model Ultra Librarian 69802-132LF CAD Model

Description

The 848915-69802-132LF is a PLCC type socket connector designed for ICs and transistors.

  • Type: PLCC Socket
  • Features: Closed Frame
  • Termination: Solder
  • Housing Material: Polyphenylene Sulfide (PPS)
  • Flammability Rating: UL94 V-0
  • Positions/Pins: 32
  • Grid: 2 x 7 and 2 x 9
  • Pitch: 0.050" (1.27mm)
  • Contact Finish (Mating): Tin
  • Contact Finish Thickness: 150.0µin (3.81µm)
  • Contact Material: Phosphor Bronze
  • Mounting: Surface Mount
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 1 A
  • Manufacturer: Amphenol
  • Standard Package: 28 pcs
