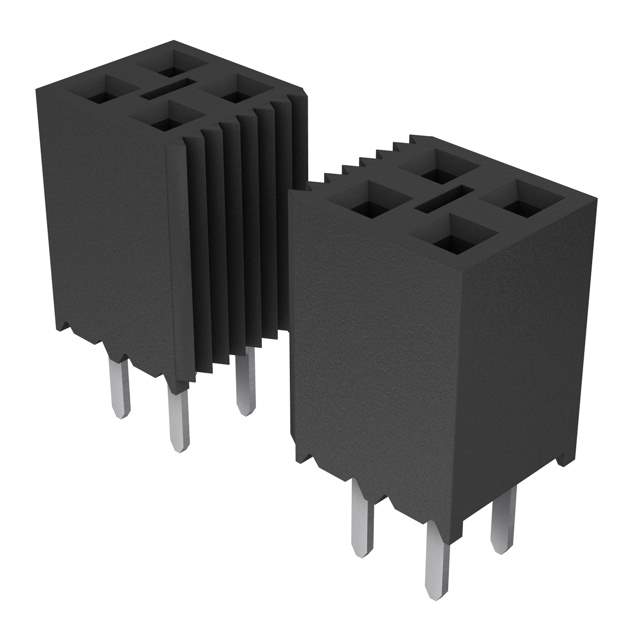

BCS-128-S-D-TE Real Image
Same model may have multiple batches, images only for reference.

BCS-128-S-D-TE

Part No BCS-128-S-D-TE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 56POS 0.1 GOLD PCB  /  56 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
BCS-128-S-D-TE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Claw™ BCS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 56
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number BCS-128
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1000153-BCS-128-S-D-TE
Ultra Librarian 3D Model Ultra Librarian BCS-128-S-D-TE CAD Model

Description

The Samtec Inc. Tiger Claw™ BCS 1000153-BCS-128-S-D-TE is a rectangular connector header with 56 positions and a pitch of 0.100" (2.54mm).

  • Positions: 56
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Receptacle Type: Receptacle
  • Contact Type: Female Sockets
  • Rows: 2
  • Fastening Type: Push-Pull
  • Voltage Rating: 475VAC
  • Contact Material: Phosphor Bronze
  • Contact Termination: Solder
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Current Rating: 4.6A per contact
  • Temperature Range: -55°C to 125°C
