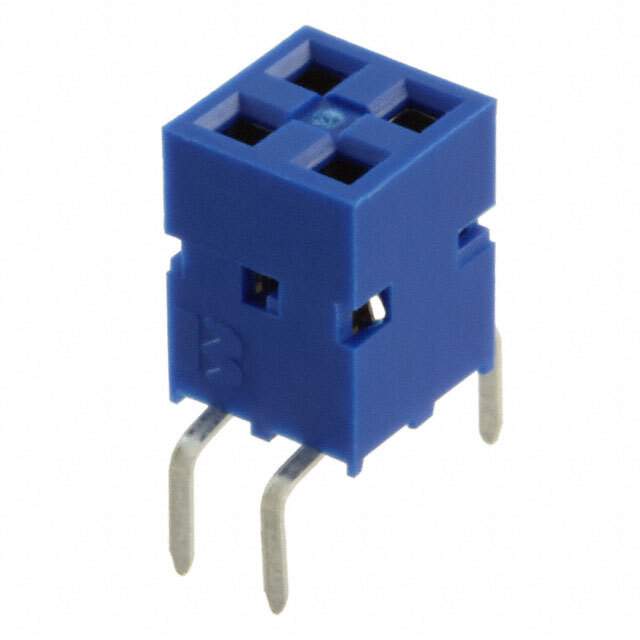

71991-302LF Real Image
Same model may have multiple batches, images only for reference.

71991-302LF

Part No 71991-302LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.1 GOLD PCB  /  4 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Tube
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Blue
Insulation Height 0.275" (6.99mm)
Contact Length - Post 0.118" (3.00mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 11.04mm
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 71991
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 71991-302LF-ND,609-5972
Standard Package 116
Win Source Part Number 1167165-71991-302LF
Ultra Librarian 3D Model Ultra Librarian 71991-302LF CAD Model

Description

The Dubox™ 71991-302LF connector is a 4-position female socket connector with a pitch of 0.100” (2.54mm) and a row spacing of 0.100” (2.54mm).

  • Connector Type: Board-to-Board
  • Fastening Type: Push-Pull
  • Insulation Material: Thermoplastic, Glass-Filled
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Gold, 30.0µin (0.76µm)
  • Contact Finish - Post: Tin, 78.7µin (2.00µm)
  • Voltage Rating: Not Specified
  • Operating Temperature: -65°C to 130°C
  • Packaging: Tube
  • Standard Package: 116 Connectors
  • Applications: Automotive, General Purpose, and Industrial
