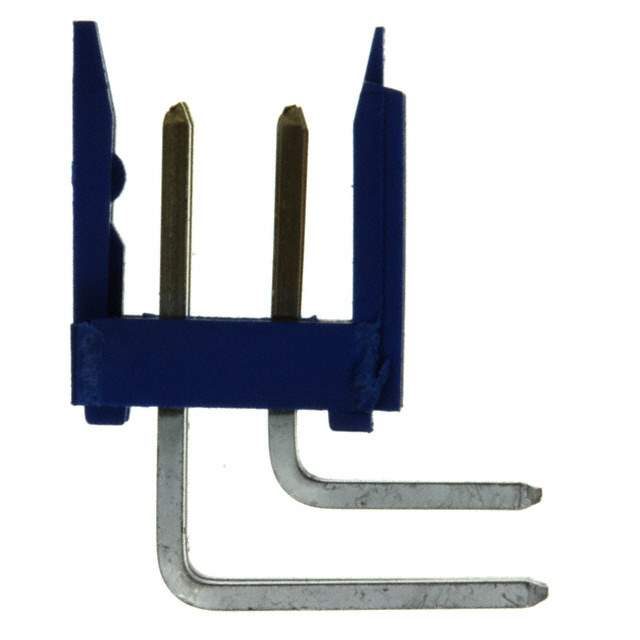

76383-302LF Real Image
Same model may have multiple batches, images only for reference.

76383-302LF

Part No 76383-302LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2.54MM  /  Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.197" (5.00mm)
Contact Length - Post 0.154" (3.91mm)
Insulation Height 0.307" (7.80mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Current Rating (Amps) 3A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 76383
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1364,2266-76383-302LF,76383302LF
Standard Package 500
Win Source Part Number 989496-76383-302LF
Ultra Librarian 3D Model Ultra Librarian 76383-302LF CAD Model

Description

The Dubox™ series male pin header connector from Amphenol ICC (FCI) is an ideal choice for board to cable/wire applications.

  • Rows: 2
  • Positions: 4
  • Pin Gender: male pins
  • Pitch: 0.100” (2.54mm)
  • Termination: soldering
  • Material: polyester and glass-filled
  • Flammability: UL94 V-0
  • Contact Shape: square
  • Temperature Range: -40°C to 125°C
  • Contact Finish (Mating): gold plated with GXT™ technology
  • Contact Finish (Post): tin plated
  • Contact Length (Mating): 0.197” (5.00mm)
  • Contact Length (Post): 0.154” (3.91mm)
  • Packaging: bulk
  • Standard Package: 500
