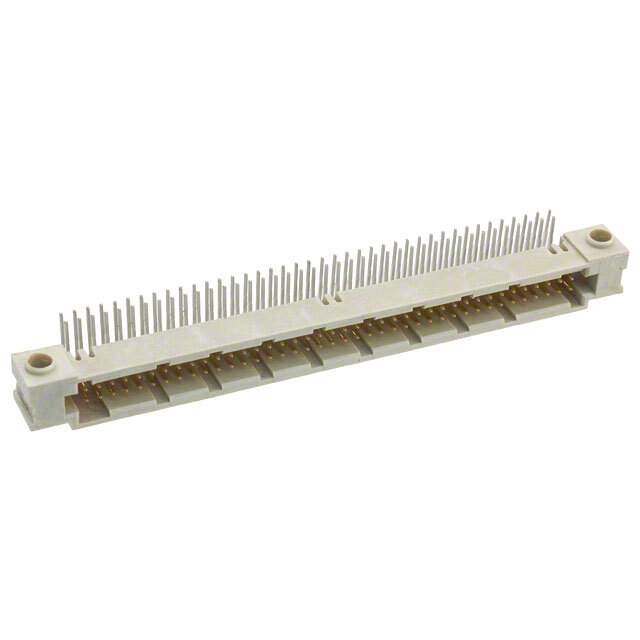

Same model may have multiple batches, images only for reference.

87402-140LF

Name: 87402-140LF
Brand: Amphenol
SKU: 1010331
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	87402-140LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 80POS 1.27MM / Connector Header Through Hole, Right Angle 80 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Rib-Cage™
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	80
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.075" (1.91mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Insulation Material	Thermoplastic, Glass Filled
Features	Mounting Flange
Temperature Range - Operating	-55°C ~ 130°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A (DC)
Contact Finish Thickness - Post	200.0µin (5.08µm)
Base Product Number	87402
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-3171,87402-140LF-ND,87402140LF
Standard Package	9
Win Source Part Number	1010331-87402-140LF
Ultra Librarian 3D Model	Ultra Librarian 87402-140LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 87402 is a 80-position Rib-Cage™ header connector with a through-hole, right-angle mounting style. Amphenol ICC (FCI).

Positions: 80
Series: Rib-Cage™
Mounting Style: Through-Hole, Right-Angle
Rows: 2
Pins: Male
Positions Loaded: All
Mounting Flange: Yes
Pitch: 0.050 inches (1.27mm)
Contact Shape: Square
Contact Finish: Gold or Gold GXT™
Mating Contact Finish Thickness: 30.0µin (0.76µm)
Post Contact Finish: Tin
Post Contact Finish Thickness: 200.0µin (5.08µm)
Insulation Material: Thermoplastic, Glass-Filled
Insulation Color: Natural
Flammability Rating: UL94 V-0
Current Rating: 1A (DC)
Temperature Range: -55°C to 130°C
Application: Board-to-Board
