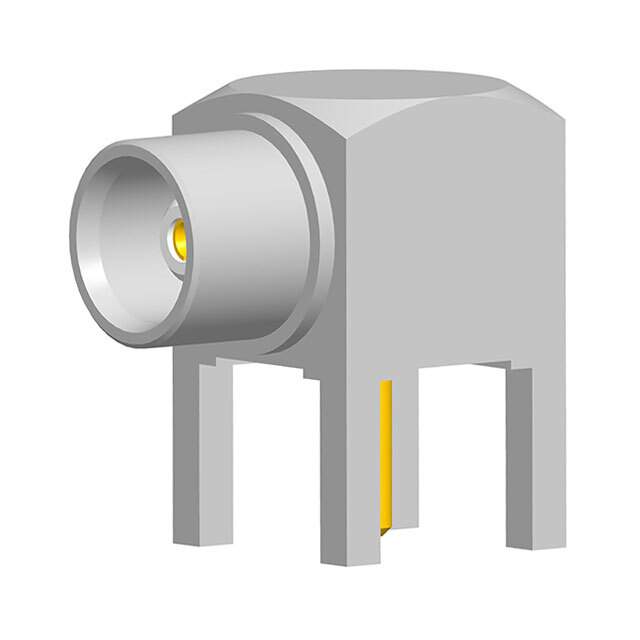

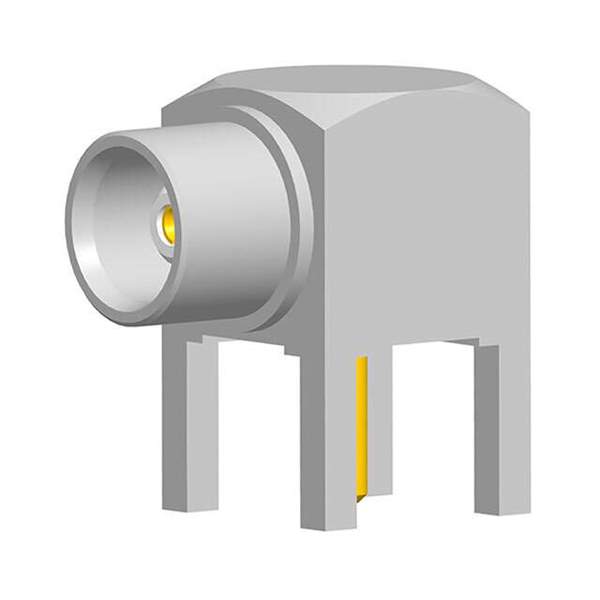

919-383J-51A

Name: 919-383J-51A
Brand: Amphenol
SKU: 1331956
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	919-383J-51A
Manufacturer	Amphenol
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN MCX RCPT R/A 50 OHM PCB / MCX Connector Receptacle, Female Socket 50Ohm Through Hole, Right Angle Solder
Datasheet	919-383J-51A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer	Amphenol RF
Packaging	Bulk
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting	Through Hole, Right Angle
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Housing Color	Silver
Center Contact Material	Beryllium Copper
Body Material	Brass
Body Finish	Tin
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Mating Cycles	500
Base Product Number	91938
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Part Number	ARF2521
Standard Package	1
Win Source Part Number	1331956-919-383J-51A
Ultra Librarian 3D Model	Ultra Librarian 919-383J-51A CAD Model

Description

The Amphenol RF 1331956-919-383J-51A MCX series female socket receptacle connector is an ideal choice for coaxial connectors (RF) assemblies.

Contact Termination: Soldered
Fastening Type: Snap-on
Maximum Frequency: 6 GHz
Impedance: 50Ohm
Packaging: Bulk
Standard Package: 1
Body Material: Brass
Center Contact Material: Beryllium copper
Dielectric Material: PTFE
Temperature Range: -65°C to 165°C
Mating Cycles: 500
Housing Color: Silver
Body Finish: Tin
Center Contact Plating: Gold
