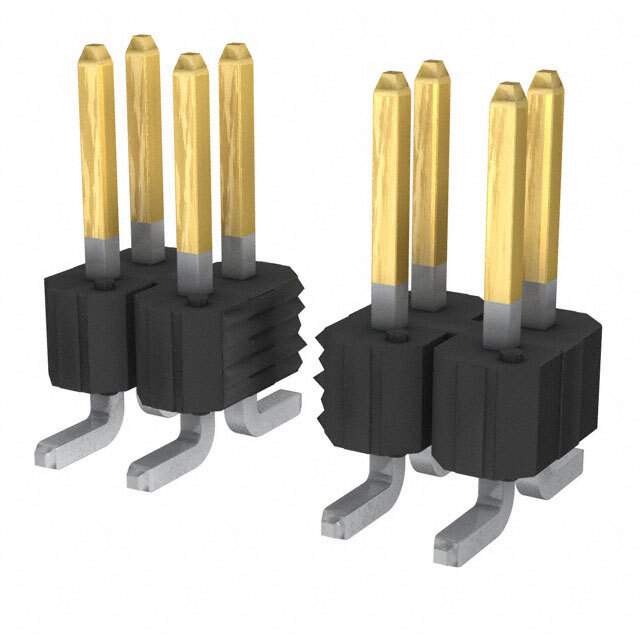

Same model may have multiple batches, images only for reference.

95157-116VLF

Name: 95157-116VLF
Brand: Amphenol
SKU: 1001515
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	95157-116VLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 16POS 2.54MM / Connector Header Surface Mount 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Tape & Reel (TR)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Features	Pick and Place
Temperature Range - Operating	-65°C ~ 130°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	95157
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	185
Win Source Part Number	1001515-95157-116VLF
Ultra Librarian 3D Model	Ultra Librarian 95157-116VLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 95157-116VLF is a high-performance male pin header connector that is designed for use in a wide range of electronic devices.

Pick and Place: Yes
Packaging: Tape and reel
Mounting: Surface-mount
Maximum Current Rating: 3A
Quantity: 185
Popularity Rating: High
