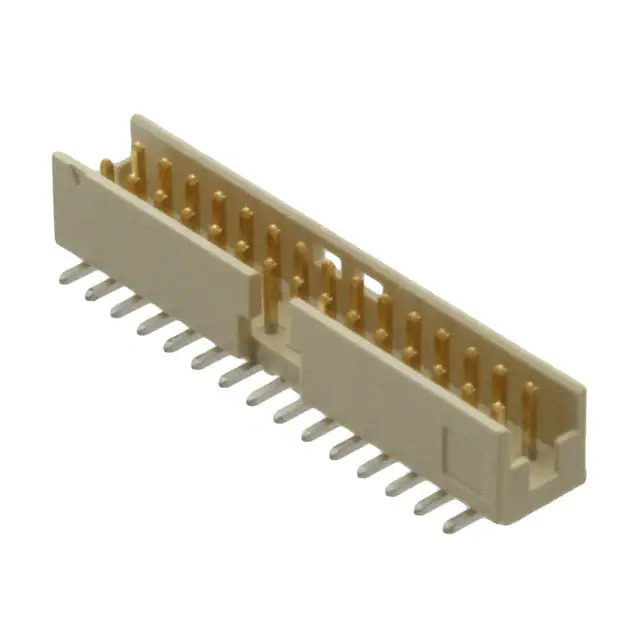

98424-G52-30ALF Amphenol
Same model may have multiple batches, images only for reference.

98424-G52-30ALF

Part No 98424-G52-30ALF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 2MM / Connector Header Surface Mount 30 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Minitek® 2.00mm
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.244" (6.20mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Keying Slot, Pick and Place
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Cream
Current Rating (Amps) 2A (AC/DC)
Voltage Rating 200V (AC/DC)
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications -
Base Product Number 98424
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362637-98424-G52-30ALF
Ultra Librarian 3D Model Ultra Librarian 98424-G52-30ALF CAD Model

Description

The 98424-G52-30ALF is a male pin header connector from Amphenol ICC (FCI).

  • Series: Minitek 2.00mm
  • Connection Type: Board-to-board or cable
  • Feature: Keying slot and pick-and-place capability
  • Positions: 30
  • Rows: Dual-row
  • Pitch: 0.079" (2.00mm)
  • Mounting Type: Surface mount
  • Current Rating: 2A (AC/DC)
  • Contact Finish: Gold with GXT™ technology
  • Post Finish: Tin
  • Flammability Rating: UL94 V-0
  • Operating Temperature: Specified by the application
