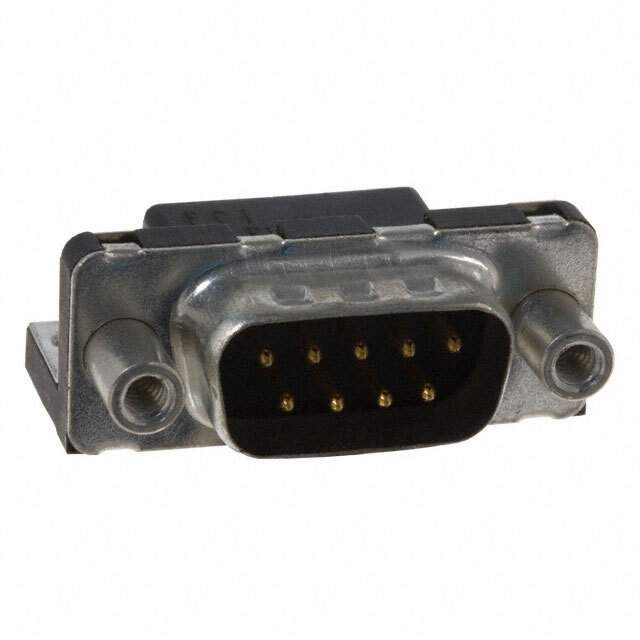

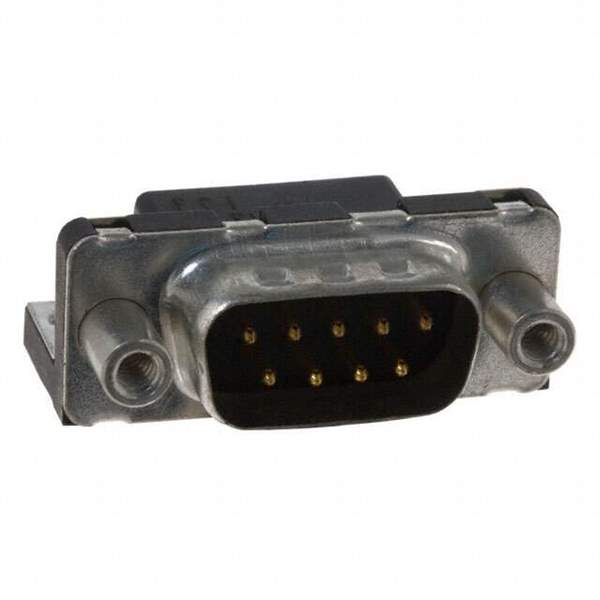

D09P33E4GV00LF Real Image
Same model may have multiple batches, images only for reference.

D09P33E4GV00LF

Part No D09P33E4GV00LF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 9POS R/A SLDR  /  9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series Delta D
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D09P33
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1480
Standard Package 30
Win Source Part Number 1023570-D09P33E4GV00LF
Ultra Librarian 3D Model Ultra Librarian D09P33E4GV00LF CAD Model

Description

The Amphenol ICC (FCI) 1023570-D09P33E4GV00LF is a 9-position D-sub connector plug with male pins.

  • Series: Delta D
  • Shell Size: 1 (DE, E)
  • Contact Finish: Flash Gold
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: -55°C to 125°C
  • Voltage Rating: 300V
  • Standard Package: 30
  • Packaging: Tray
  • Current Rating: 5A per contact
  • Mounting: Through-Hole, Right Angle
  • Features: Grounding Indents, Mounting Brackets, Board Lock
  • Shell Material: Steel, Tin-Nickel Plated
  • Mating Side Feature: Flange, Female Screwlock (4-40)
