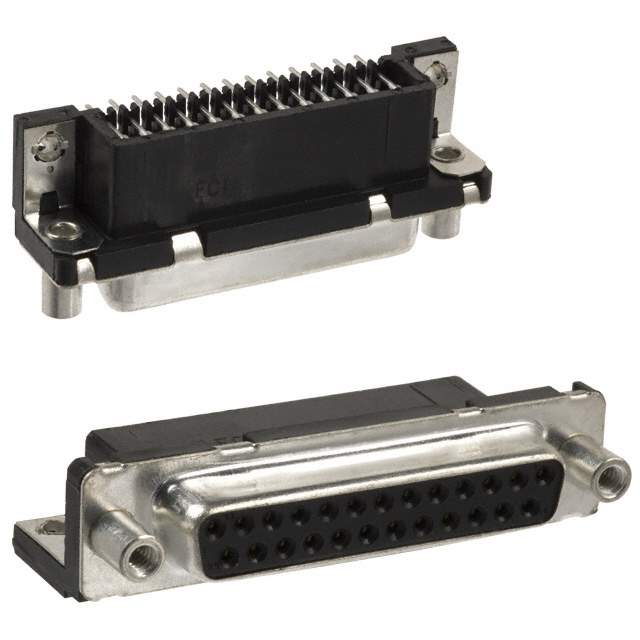

D25S33E6GV00LF Real Image
Same model may have multiple batches, images only for reference.

D25S33E6GV00LF

Part No D25S33E6GV00LF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 25POS R/A SLDR  /  25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series Delta D
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold or Gold, GXT™
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D25S33
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names D25S33E6GV00LF-ND,2266-D25S33E6GV00LF,609-6499
Standard Package 20
Win Source Part Number 1202996-D25S33E6GV00LF
Ultra Librarian 3D Model Ultra Librarian D25S33E6GV00LF CAD Model

Description

Amphenol ICC (FCI) presents a D-Sub connector that comes with board lock and is available in black color.

  • Type: Receptacle
  • Gender: Female Sockets
  • Contact Type: Signal
  • Number of Rows: Two
  • Termination: Solder
  • Contact Finish: Gold, 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • D-Sub Style: D-Sub
  • Voltage Rating: 300V
  • Flammability Rating: UL94 V-0
  • Packaging: Standard, 20
  • Mounting Style: Through Hole, Right Angle
  • Backset Spacing: 0.318 inches (8.08mm)
  • Operating Temperature: -55°C to 125°C
