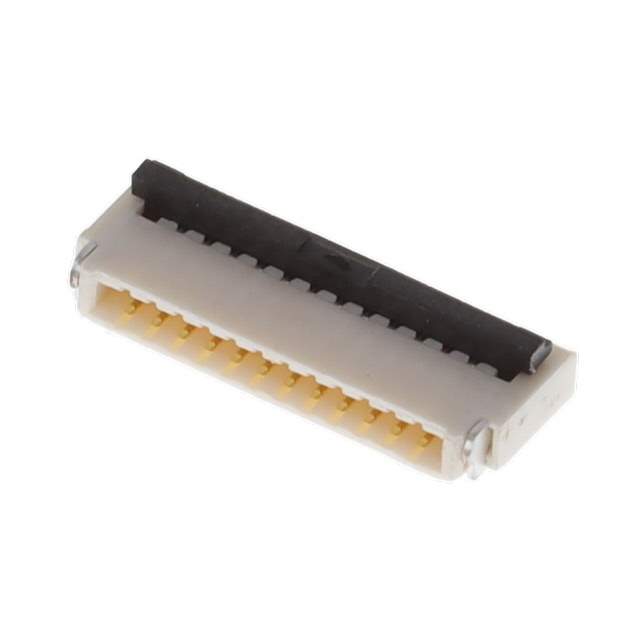

Same model may have multiple batches, images only for reference.

F3311A7H121012E200

Name: F3311A7H121012E200
Brand: Amphenol
SKU: 1350149
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	F3311A7H121012E200
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC 12POS 0.5MM R/A / 12 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Amphenol ICC (FCI)
Series	Aorora F331
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	12
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.040" (1.02mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA9T) , Nylon 9T
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	3.00µin (0.076µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Base Product Number	F3311
Standard Package	4,000
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350149-F3311A7H121012E200
Ultra Librarian 3D Model	Ultra Librarian F3311A7H121012E200 CAD Model

Alternative Products

Description

The Aorora F331 is a 12-position FFC/FPC connector that features zero insertion force (ZIF) and solder retention.

Positions: 12
Features: Zero Insertion Force (ZIF), Solder Retention
Pitch: 0.020 inches (0.50mm)
Contact Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: 3.00 microns (0.076 micrometers)
FFC/FPC Thickness: 0.30mm
Connector/Contact Type: Contacts, Top and Bottom
Housing Material: Liquid Crystal Polymer (LCP)
Housing Color: Natural
Actuator Material: Polyamide (PA9T) and Nylon 9T
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Temperature Range: -55°C to 85°C
Mating Cycles: 20
