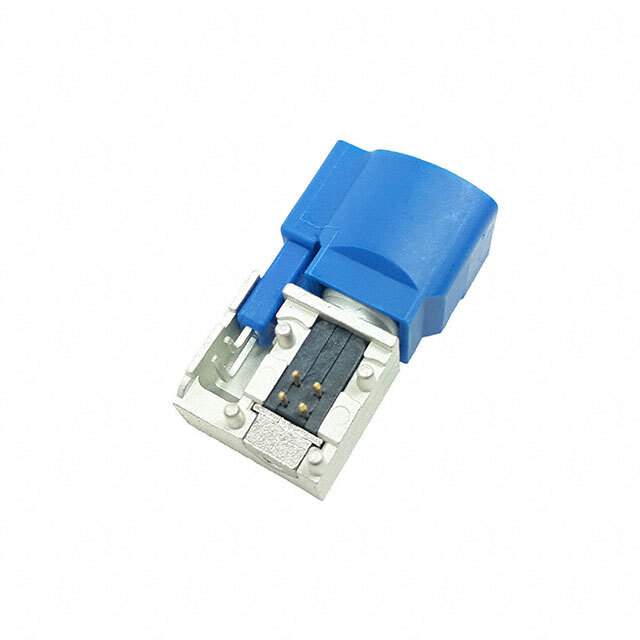

HSDNCRPPCB7B Real Image
Same model may have multiple batches, images only for reference.

HSDNCRPPCB7B

Part No HSDNCRPPCB7B
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN HSD+2 R/A PLUG C CODE / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Through Hole, Right Angle
Fastening Type Latch Lock
Number of Ports 1
Features Code C
Housing Color Blue
Center Contact Material Copper Alloy
Body Material Zinc Alloy
Body Finish Tin
Center Contact Plating Gold
Dielectric Material Thermoplastic
Temperature Range - Operating -40°C ~ 105°C
Mating Cycles 25
Base Product Number HSDNCRPP
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 44
Win Source Part Number 1331989-HSDNCRPPCB7B
Ultra Librarian 3D Model Ultra Librarian HSDNCRPPCB7B CAD Model

Description

The Amphenol ICC (Commercial Products) HSDNCRPPCB7B is a coaxial connector (RF) assembly that comes in a tray packaging.

  • Feature: Code C
  • Connector Type: Plug, Male Pin
  • Fastening Type: Latch Lock
  • Termination: Solder
  • Connector Style: HSD®, Fakra, Quadraxial
  • Mounting: Through Hole, Right Angle
  • Impedance: 100Ohm
  • Body Material: Zinc Alloy
  • Housing Color: Blue
