Same model may have multiple batches, images only for reference.

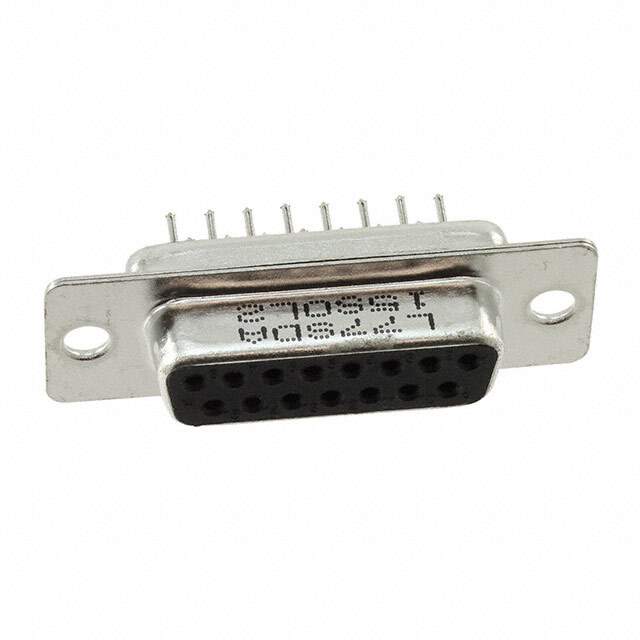

L77SDA15SOL2 Real Image
Same model may have multiple batches, images only for reference.

L77SDA15SOL2

Part No L77SDA15SOL2
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS VERT SLDR / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number L77SDA15
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 50
Win Source Part Number 1333229-L77SDA15SOL2
Ultra Librarian 3D Model Ultra Librarian L77SDA15SOL2 CAD Model

Description

The Amphenol ICC (Commercial Products) 1333229-L77SDA15SOL2 is a 15 position D-sub connector assembly in black color.

  • Positions: 15
  • Color: Black
  • Connector Type: Receptacle with female sockets
  • Contact Type: Signal
  • Shell Material: Steel with tin plated
  • Dielectric Material: Thermoplastic, glass filled
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
  • Flange Feature: Housing or shell (unthreaded)
  • Mounting: Through hole
  • Shell Size: 2 (DA, A)
  • Contact Form: Stamped
  • Contact Finish Thickness: Gold
  • Contact Material: Phosphor Bronze
  • Material Flammability Rating: UL94 V-0
