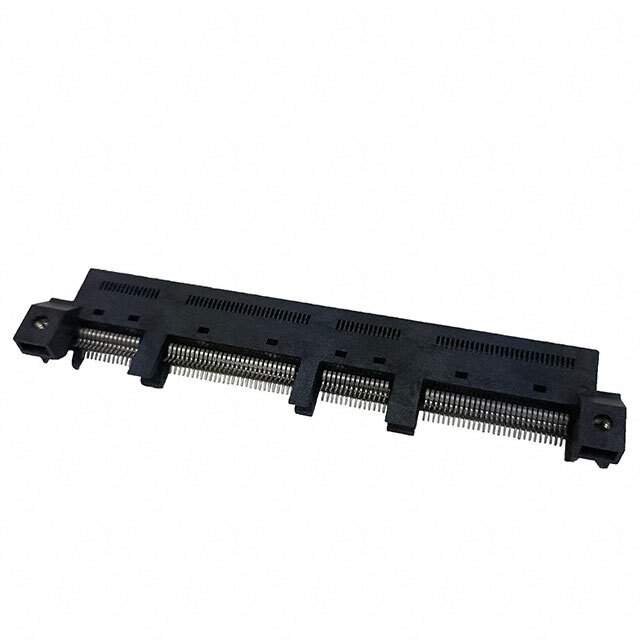

ME1016813401311 Real Image
Same model may have multiple batches, images only for reference.

ME1016813401311

Part No ME1016813401311
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 168P 0.024 / 168 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 14; 28; 14; 28
Number of Positions 168
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.024" (0.60mm)
Read Out Dual
Mounting Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Flange Feature Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number ME101
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 15
Win Source Part Number 1334008-ME1016813401311
Ultra Librarian 3D Model Ultra Librarian ME1016813401311 CAD Model

Description

The ME1016813401311 is a 168 positions edgeboard connector from Amphenol ICC (FCI).

  • Positions: 168
  • Mounting: Board Edge Straddle
  • Pitch: 0.024 inches (0.60 mm)
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Operating Temperature: -55°C to 105°C
