Same model may have multiple batches, images only for reference.

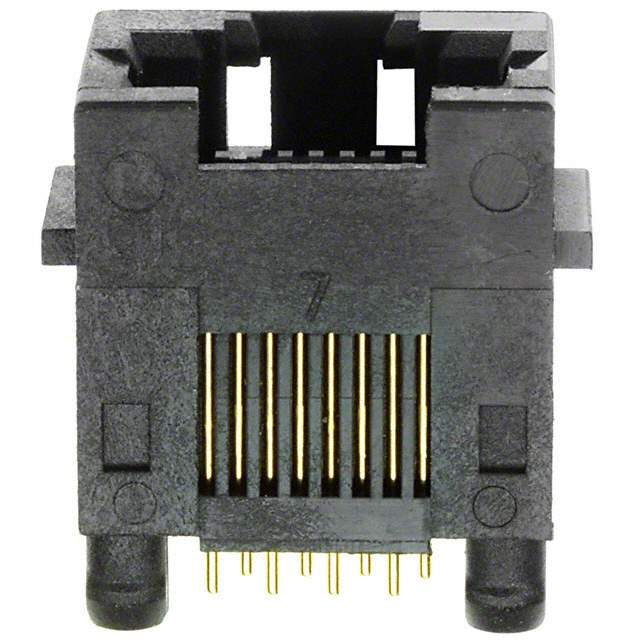

RJHSE-3080 Real Image
Same model may have multiple batches, images only for reference.

RJHSE-3080

Part No RJHSE-3080
Manufacturer Amphenol
Catalog Modular Connectors
Description CONN MOD JACK 8P8C VERT UNSHLD  /  Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr Amphenol ICC (Commercial Products)
Series RJHSE
Package Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Shielding Unshielded
Features Board Lock, Panel Stops
LED Color Does Not Contain LED
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Housing Material Thermoplastic
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RJHSE308
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names RJHSE3080
Standard Package 110
Win Source Part Number 1166737-RJHSE-3080
Ultra Librarian 3D Model Ultra Librarian RJHSE-3080 CAD Model

Description

The Amphenol ICC (Commercial Products) RJHSE-3080 is a vertical through-hole jack connector designed for use in various electronic circuits.

  • Features: Board Lock and Panel Stops
  • Row: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0 µin (0.76 µm)
  • Contact Material: Phosphor Bronze
  • Shielded: Unshielded
  • Housing Material: Thermoplastic
  • Orientation: Vertical
  • Number of Ports: One
  • Standard Package: 110
  • LED Color: Does Not Contain LED
  • Tab Direction: User-Selectable
  • Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Temperature Range: -55°C to 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
