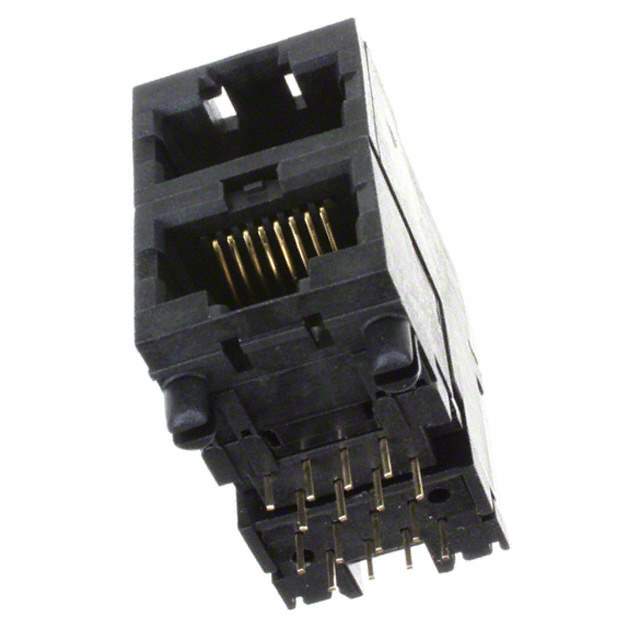

RJSAE508002 Real Image
Same model may have multiple batches, images only for reference.

RJSAE508002

Part No RJSAE508002
Manufacturer Amphenol
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A UNSHLD  /  Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
Datasheet
RJSAE508002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr Amphenol ICC (Commercial Products)
Series RJSAE
Package Box
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 2
Number of Rows 2
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Up and Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RJSAE508
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-RJSAE508002,RJSAE-5080-02
Standard Package 35
Win Source Part Number 1002356-RJSAE508002
Ultra Librarian 3D Model Ultra Librarian RJSAE508002 CAD Model

Description

The RJSAE series jack connector is a modular connector designed for various applications. It has a 90° angle (right) orientation with a through-hole mounting type.

  • Angle: 90°
  • Mounting Type: Through Hole
  • Ports: 2
  • Contacts: 8p8c (RJ45, Ethernet)
  • Tab Direction: Up and Down
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Contact Material: Phosphor Bronze
  • Shielding: Unshielded
  • Housing Material: Thermoplastic
  • Package: Box
  • Temperature Range: -55°C to 85°C
  • Manufacturer: Amphenol ICC (Commercial Products)
