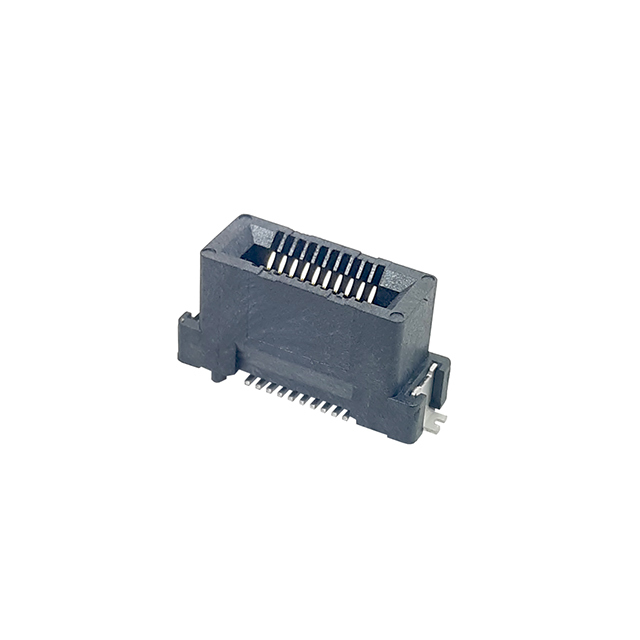

SE1002023111111 Amphenol – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SE1002023111111

Part No SE1002023111111
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description 20 Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Series Slim Cool Edge 0.65mm
Packaging Reel - TR
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 20
Card Thickness 0.063" (1.60mm)
Number of Rows 2
Pitch 0.026" (0.65mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number SE100
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1482152-SE1002023111111
Ultra Librarian 3D Model Ultra Librarian SE1002023111111 CAD Model
