Same model may have multiple batches, images only for reference.

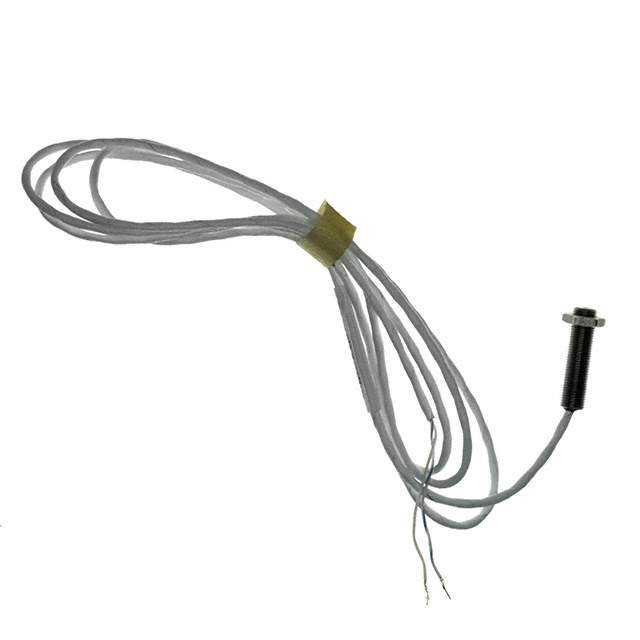

MA3055S10 Real Image
Same model may have multiple batches, images only for reference.

MA3055S10

Part No MA3055S10
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR VRS SINE WAVE WIRE LEADS / Magnetic VRS (Passive) Ferrous Metals, Gear Tooth Sine Wave Wire Leads Barrel, Stainless Steel
Datasheet
MA3055S10 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Honeywell Sensing and Productivity Solutions
Series MA3055
Package Bulk
Type VRS (Passive)
Output Type Sine Wave
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Wire Leads
Frequency 70 kHz
Temperature Range - Operating -73°C ~ 230°C (TA)
Package / Case Barrel, Stainless Steel
Base Product Number MA3055
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Other Names .MA3055S10,480-3272
Standard Package 1
Win Source Part Number 962708-MA3055S10
Ultra Librarian 3D Model Ultra Librarian MA3055S10 CAD Model

Description

The Honeywell Sensing and Productivity Solutions MA3055S10 is a magnetic sensor that operates at a frequency of 70 kHz.

  • Product Name: MA3055S10
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Type: Magnetic Sensor
  • Frequency: 70 kHz
  • Sensor Type: VRS (passive)
  • Output: Sine Wave
  • Actuator Material: Ferrous Metals and Gear Tooth
  • Temperature Range: -73°C to 230°C (TA)
  • Termination: Wire Leads
  • Package: Stainless Steel, Barrel-Shaped
  • Popularity: Low
  • Supply and Demand: Shortage
  • Mfr Part Number: .MA3055S10,480-3272
