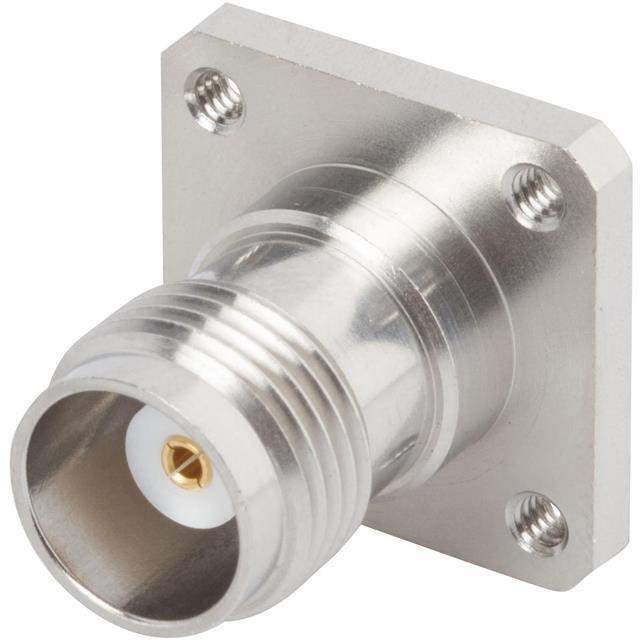

Same model may have multiple batches, images only for reference.

SF1102-6024

Name: SF1102-6024
Brand: Amphenol
SKU: 1161780
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SF1102-6024
Manufacturer	Amphenol
Catalog	Coaxial Connectors (RF) - Adapters
Description	CONN ADAPT SMA JACK TO PTNC JACK / Adapter Coaxial Connector SMA Jack, Female Socket To PTNC Jack, Female Socket 50Ohm
Datasheet	SF1102-6024 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr	Amphenol SV Microwave
Series	SMA
Package	Bulk
Adapter Type	Jack to Jack
Conversion Type	Between Series
Adapter Series	SMA to PTNC
Center Gender	Female to Female
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End)	PTNC Jack, Female Socket
Impedance	50Ohm
Style	Straight
Mounting Type	Panel Mount
Mounting Feature	Flange
Fastening Type	Threaded, Threaded
Frequency - Max	18 GHz
Center Contact Plating	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Mating Cycles	500
Base Product Number	SF1102
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4010
Standard Package	25
Win Source Part Number	1161780-SF1102-6024
Ultra Librarian 3D Model	Ultra Librarian SF1102-6024 CAD Model

Alternative Products

Description

The Amphenol SV Microwave SF1102-6024 is a jack-to-jack straight adapter with a conversion type of between series.

Type: Jack-to-Jack Straight Adapter
Conversion Type: Between Series
Frequency Range: Up to 18 GHz
Impedance: 50Ohm
Mounting Type: Panel Mount
Fastening Type: Threaded, Threaded
Body Material: Stainless Steel
Dielectric Material: PTFE
