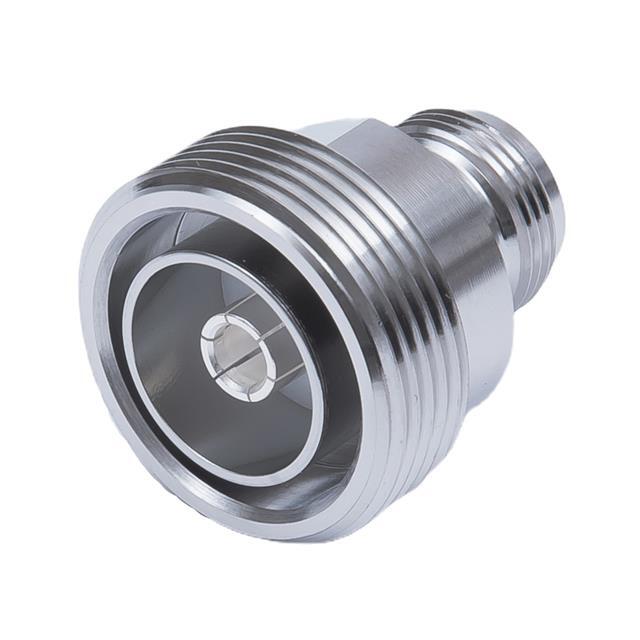

Same model may have multiple batches, images only for reference.

7/16J-NJ

Get a Quote

Part No	7/16J-NJ
Manufacturer	TYCLON
Catalog	Coaxial Connectors (RF) - Adapters
Description	Adapter Coaxial Connector N Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
Datasheet	7/16J-NJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Package	Retail Package
Product Status	Active
Adapter Type	Jack to Jack
Conversion Type	Between Series
Adapter Series	N to 7/16
Center Gender	Female to Female
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	7/16 Jack, Female Socket
Impedance	50 Ohms
Style	Straight
Mounting Type	Free Hanging (In-Line)
Fastening Type	Threaded, Threaded
Frequency - Max	6GHz
Ingress Protection	IP67 - Dust Tight, Waterproof
Center Contact Plating	Silver
Ultra Librarian 3D Model	Ultra Librarian 7/16J-NJ CAD Model
