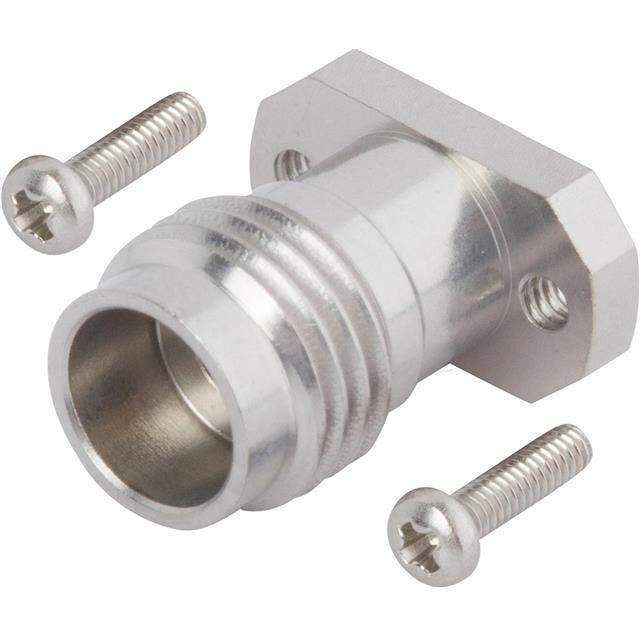

SF1621-60029-1S Real Image
Same model may have multiple batches, images only for reference.

SF1621-60029-1S

Part No SF1621-60029-1S
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN 2.4MM JACK STR 50 OHM SMD / 2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50Ohm Surface Mount Compression
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol SV Microwave
Series 2.4mm
Package Tray
Connector Style 2.4mm (APC-2.4, OS-50)
Connector Type Jack, Female Socket
Contact Termination Compression
Shield Termination Screw
Impedance 50Ohm
Mounting SMD (SMT)
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 50 GHz
Number of Ports 1
Features Mounting Hardware
Housing Color Silver
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 2 Screws
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polyetherimide (PEI)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number SF1621
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 100
Win Source Part Number 969457-SF1621-60029-1S
Ultra Librarian 3D Model Ultra Librarian SF1621-60029-1S CAD Model

Description

The Amphenol SV Microwave SF1621-60029-1S is a 2.4mm connector that comes with mounting hardware.

  • Connector Type: Jack, Female Socket
  • Fastening Type: Threaded
  • Package: Tray
  • Contact Termination: Compression
  • Connector Style: 2.4mm (APC-2.4, OS-50)
  • Ingress Protection: No
  • Maximum Frequency: 50 GHz
  • Housing Color: Silver
  • Number of Ports: 1
  • Standard Package: 100 connectors
  • Mounting Type: SMD (SMT)
  • Impedance: 50 Ohm
  • Mounting Feature: Flange
  • Body Material: Stainless Steel
  • Shield Termination: Screw
  • Cable Group: Not Specified
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polyetherimide (PEI)
  • Mating Cycle: 500
  • Included Pieces: 3 pieces (1 connector and 2 screws)
  • Operating Temperature Range: -65°C to 165°C
  • REACH: Unaffected
  • HTSUS: 8536.69.4010
  • Base Product Number: SF1621
