Same model may have multiple batches, images only for reference.

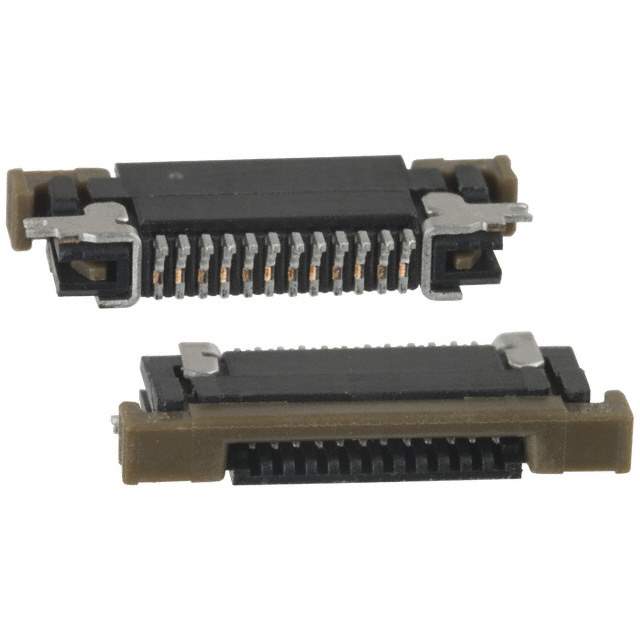

SFV12R-1STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFV12R-1STE1LF

Part No SFV12R-1STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 12POS 0.50MM R/A / 12 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Reel - TR
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.071" (1.80mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA), Nylon, Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Actuator Color Brown
Base Product Number SFV12R
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 609-1858-2,609-1858-1,SFV12R1STE1LF,609-1858-6
Standard Package 3,000
Win Source Part Number 1333406-SFV12R-1STE1LF
Ultra Librarian 3D Model Ultra Librarian SFV12R-1STE1LF CAD Model

Description

The SFV12R-1STE1LF is a FFC, FPC (Flat Flexible) Connector Assembly designed for use in a variety of electronic applications.

  • Number of Positions: 12
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention, zero insertion force (ZIF)
  • Contact Finish: Tin
  • Contact Material: Phosphor bronze
  • Voltage Rating: 50V
  • Mounting: Surface mount, right angle
  • Height Above Board: 0.071" (1.80mm)
  • Current Rating (Amps): 0.5A
  • Temperature Range: -55°C to 105°C
  • Package: Reel - TR
  • Standard Package: 3,000
