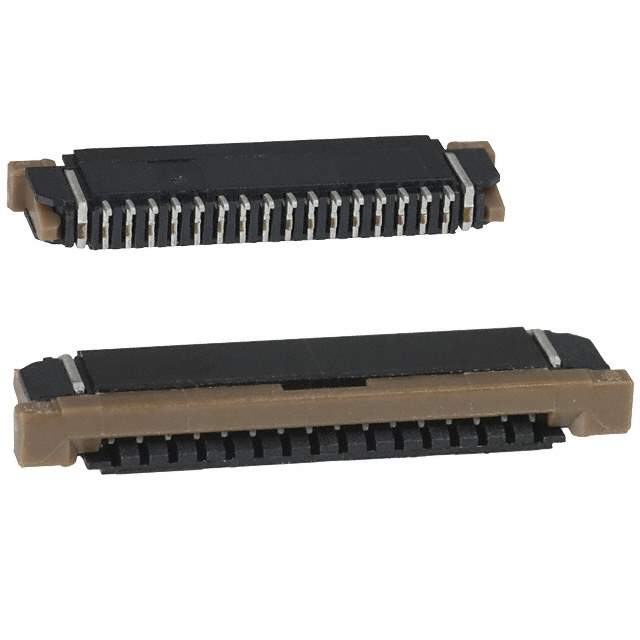

SFW16R-3STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW16R-3STE1LF

Part No SFW16R-3STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 16POS 1.00MM R/A  /  16 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 16
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Black
Actuator Color Black
Mating Cycles 20
Base Product Number SFW16R
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1909-2,SFW16R3STE1LF,609-1909-1,609-1909-6
Standard Package 2,000
Win Source Part Number 966718-SFW16R-3STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW16R-3STE1LF CAD Model

Description

The Amphenol ICC (FCI) 966718-SFW16R-3STE1LF is an FFC, FPC (Flat Flexible) connector that belongs to the connectors category.

  • Series: SFW-R
  • Positions: 16
  • Pitch: 0.039" (1.00mm)
  • Insertion Force: Zero Insertion Force (ZIF)
  • Termination: Kinked Pin
  • Contact Finish: Tin
  • Package: Tape & Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 100V
  • Height Above Board: 0.106" (2.70mm)
  • Flat Flex Type: FFC, FPC
  • Locking Feature: Slide Lock
  • Cable End Types: Straight and Tapered
  • Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
  • REACH Affected: Yes
  • Alternative Part Numbers: SFW16R-2STE1LF, SFW16R-2STE9LF, SFW16R-1STE1LF, 52808-1670, 68611814122, 52808-1870SFW16R-3STE1LF., SFW16R3STE1LF
