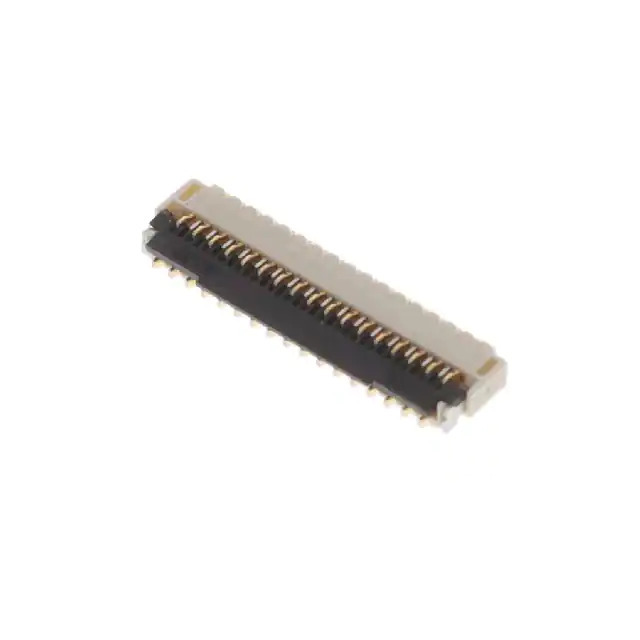

3-2328724-3 TE Connectivity
Same model may have multiple batches, images only for reference.

3-2328724-3

Part No 3-2328724-3
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 33POS 0.3MM R/A / 33 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 33
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Thermoplastic
Actuator Material Thermoplastic
Features -
Voltage Rating 30V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 3.00µin (0.076µm)
Housing Color Natural
Actuator Color Black
Mating Cycles -
Base Product Number 2328724
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362725-3-2328724-3
Ultra Librarian 3D Model Ultra Librarian 3-2328724-3 CAD Model

Description

The FFC, FPC Connector Assembly is a versatile and reliable component for electronic devices. Manufactured by TE Connectivity AMP Connectors, this connector assembly is designed for use with flexible flat cables.

  • Packaging: Tape and Reel
  • Product Status: Active
  • Product Category: FFC, FPC connectors
  • Base Product Number: 2328724
  • Contact Finish: Gold
