Same model may have multiple batches, images only for reference.

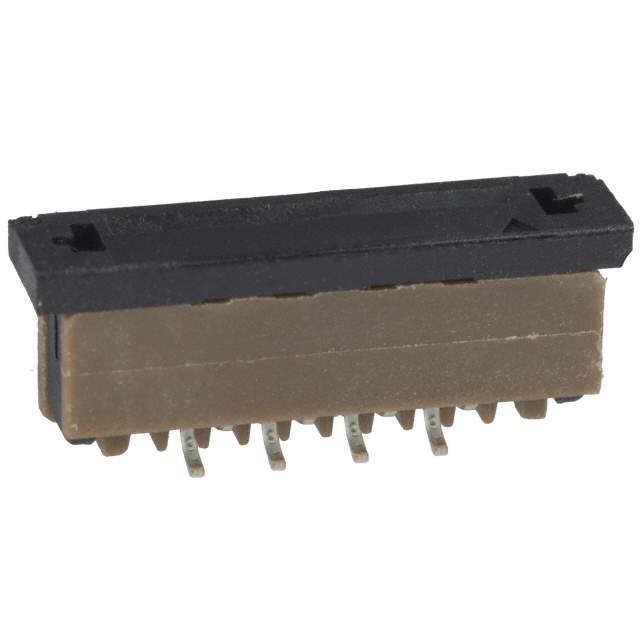

SFW8S-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW8S-2STE1LF

Part No SFW8S-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 8POS 1MM SMD  /  8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.209" (5.30mm)
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW8S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names SFW8S2STE1LF,2266-SFW8S-2STE1LFTR,2266-SG225M400AH1KAKPLPTR,609-1139-6,609-1139-1,609-1139-2
Standard Package 1,000
Win Source Part Number 1092516-SFW8S-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW8S-2STE1LF CAD Model

Description

The SFW series connector is a zero insertion force (ZIF) flat flexible cable (FFC) and flexible printed circuit (FPC) connector.

  • Insertion Force: Zero Insertion Force (ZIF)
  • Cable Type: Flat Flexible Cable (FFC) / Flexible Printed Circuit (FPC)
  • Pitch: 0.039 inches (1.00mm)
  • Positions: 8
  • Termination: Kinked Pin
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Housing Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Surface Mount Technology (SMT)
  • Temperature Range: -55°C to 105°C
  • Package: Tape and Reel
  • Standard Package: 1,000 units
