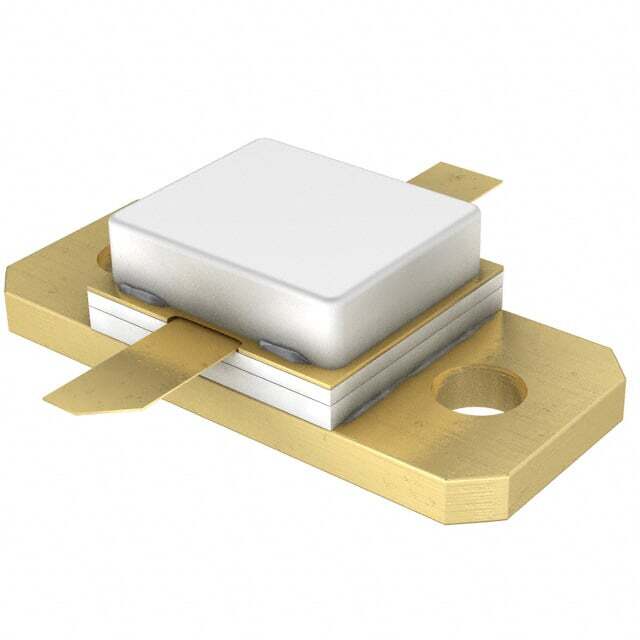

Same model may have multiple batches, images only for reference.
MZ0912B100Y,114
Same model may have multiple batches, images only for reference.

MZ0912B100Y,114

Part No MZ0912B100Y,114
Manufacturer Ampleon USA Inc.
Catalog RF Transistors (BJT)
Description RF TRANS NPN 20V 1.215GHZ CDFM2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features RF Transistor NPN 20V 6A 1.215GHz 290W Chassis Mount CDFM2
Manufacturer Ampleon USA Inc.
Package Tray
Part Status Obsolete
Operating Temperature Range 200°C (TJ)
Mounting Chassis Mount
Package SOT-443A
Case / Package CDFM2
Family Name MZ0912
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 933994050114, MZ0912B100Y TRAY, MZ0912B100Y TRAY-ND
Quantity per package 4
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886700-MZ0912B100Y,114
Ultra Librarian 3D Model Ultra Librarian MZ0912B100Y,114 CAD Model

Description

The Ampleon USA Inc. MZ0912B100Y,114 is a chassis mount RF transistor with an NPN type.

  • Frequency: 1.215GHz
  • Voltage Rating: 20V
  • Current Rating: 6A
  • Package / Case: SOT-443A
  • Packaging: Tray
  • Transistor Type: NPN
  • Mounting Type: Chassis Mount
  • Power Output: 290W
  • Category: Discrete Semiconductor Products
  • EOL Date: Obsolete
