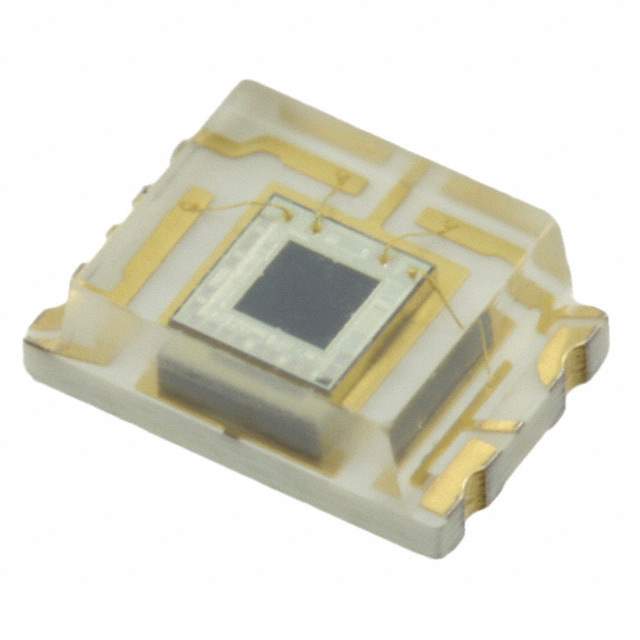

The TSL237T is a light-to-frequency converter from ams (Austria Microsystems). It combines a photodiode and a current-to-frequency converter on a single CMOS integrated circuit. The output is a square wave (50% duty cycle) with frequency directly proportional to the light intensity. Because the output is a frequency, it is easily measured by a microcontroller, and can be transmitted over long distances without degradation. It is designed for applications requiring light intensity measurement, such as ambient light sensing, industrial control, and optical encoding.

Applications:

• Ambient Light Sensing: Measuring ambient light levels for automatic display brightness adjustment in mobile devices and lighting control systems.
• Industrial Control: Light intensity monitoring in industrial automation and process control applications.
• Optical Encoding: Measuring light intensity for position and motion sensing in optical encoders.
• Medical Equipment: Light intensity measurement in medical diagnostic equipment.
• Photography: Light metering in cameras and light exposure control systems.

Features:

• Light-to-Frequency Conversion: Converts light intensity into a frequency output.
• High Sensitivity: Detects low light levels with high accuracy.
• Linear Output: Output frequency is linearly proportional to light intensity.
• Single Supply Operation: Operates from a single power supply voltage.
• CMOS Technology: Low power consumption and high reliability.
• Temperature Compensated: Stable performance over a wide temperature range.
• Compact Package: Small form factor for space-constrained applications.

Benefits:

• Accurate Light Measurement: Provides accurate and reliable light intensity measurements.
• Easy Interface: Frequency output simplifies interfacing with microcontrollers.
• Noise Immunity: Frequency output is less susceptible to noise than analog voltage output.
• Wide Dynamic Range: Measures a wide range of light intensities.
• Low Power Consumption: Minimizes energy usage in battery-powered devices.
• Stable Performance: Temperature compensation ensures stable performance over temperature variations.

Additional Details:

The TSL237T light-to-frequency converter consists of a photodiode and a current-to-frequency converter integrated on a single CMOS chip. The photodiode generates a current proportional to the incident light intensity. This current is then converted into a frequency by the current-to-frequency converter. The output frequency is linearly proportional to the light intensity, making it easy to calibrate and use. The device operates from a single power supply voltage and consumes very little power. It is temperature compensated to ensure stable performance over a wide temperature range. It is commonly used in ambient light sensing, industrial control, optical encoding, medical equipment, and photography.
