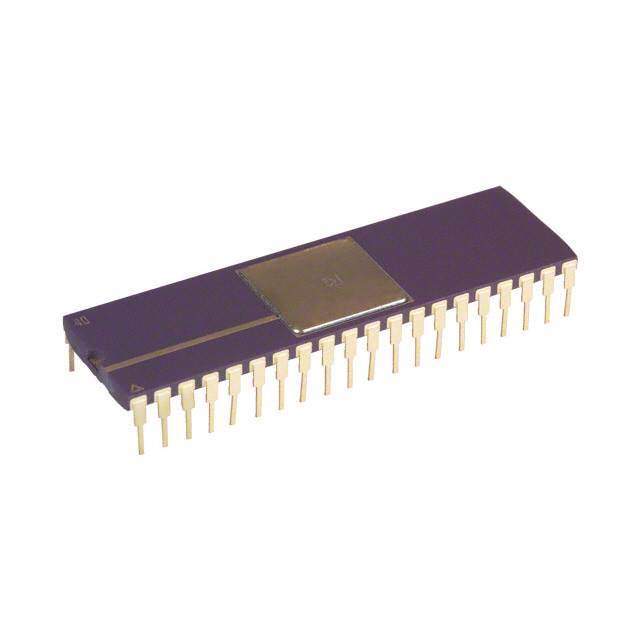

Analog Devices Inc. AD2S80AJD Variable Resolution, Monolithic Resolver-to-Digital Converter

The AD2S80AJD from Analog Devices Inc. represents a high-performance, variable resolution, monolithic resolver-to-digital converter, offering an ideal solution for precision motion control and positioning systems. This sophisticated component is designed to interpret the rotational angle of a resolver's output shaft into a digital value, making it an essential part of servo systems and various industrial applications where accuracy and reliability are paramount.

The AD2S80AJD provides a versatile range of resolutions, selectable from 10 to 16 bits, allowing designers to tailor the resolution to meet the specific demands of their system. This flexibility ensures that the converter can be optimized for applications ranging from robotics to aerospace, where precision can be critical to the success of the operation.

Key Features:

• Variable Resolution: User-selectable resolution from 10 to 16 bits, facilitating use in a wide array of applications with differing precision requirements.
• Monolithic Design: Integrates all the functions required for resolver-to-digital conversion in a single chip, simplifying design and enhancing reliability.
• High Tracking Rate: Capable of tracking resolver rates up to 1040 rps, suitable for high-speed systems.
• Accuracy: Provides high accuracy with a typical accuracy of ±10 arc minutes, ensuring precise position and velocity measurements.
• Reliability: Designed by Analog Devices Inc., a leader in high-performance analog technology, this component is built for dependable operation in challenging environments.

With its complete Type II tracking loop, the AD2S80AJD eliminates the need for external components such as operational amplifiers and resistors. This not only saves board space but also reduces the complexity of the circuit design. The converter includes features such as a loss-of-tracking alarm, which notifies the system in the event of a failure to track the input signal, and a bandwidth adjustment pin, which allows the user to set the dynamic performance of the converter.

Whether used in industrial machine tools, robotics, avionics, or military targeting systems, the AD2S80AJD is designed to deliver reliable, high-quality performance in any application that requires accurate angular measurements. Its robust construction and proven design make it a preferred choice for engineers looking to enhance their control systems with precision and dependability.
