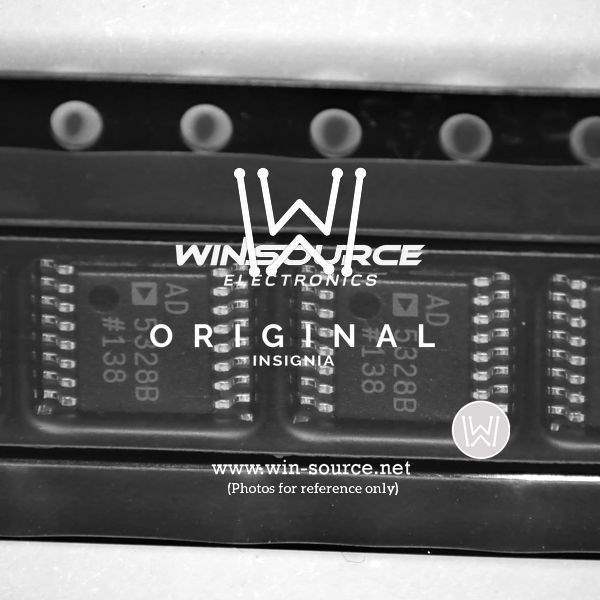

AD5328BRUZ

Part No AD5328BRUZ
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT 2.5V OCTAL 16-TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tube/Rail
Status Active
Number of Bits 12
Number of D/A Converters 8
Settling Time 10μs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type External
Analog Supply Voltage 2.5 V to 5.5 V
Digital Supply Voltage 2.5 V to 5.5 V
INL/DNL (LSB) ±2, ±0.2
Temperature Range - Operating -40°C to 125°C
Case / Package 16-TSSOP
Win Source Part Number 076874-AD5328BRUZ
Family Name AD5328
Introduction Date September 15, 2005
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AD5328BRUZ CAD Model

Description

Overview of AD5328BRUZ from Analog Devices Inc.

The AD5328BRUZ is a high-performance, octal, 12-bit digital-to-analog converter (DAC) designed and manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This DAC offers an excellent combination of accuracy, speed, and power efficiency, making it an ideal choice for a wide range of applications, including industrial automation, process control, and communication systems.

Key Features

  • Resolution: The AD5328BRUZ boasts a 12-bit resolution, providing fine-grain control over output voltage levels for precise analog signal generation.
  • Channels: It features eight independent DAC channels, allowing for multiple outputs to be controlled simultaneously, which is particularly useful in complex systems requiring multi-channel output.
  • Interface: The device supports a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a wide variety of microcontrollers and digital systems.
  • Power Supply: It operates on a single 2.5 V to 5.5 V power supply, offering flexibility in different power environments and contributing to lower power consumption.
  • Package: The AD5328BRUZ comes in a compact TSSOP (Thin Shrink Small Outline Package) form factor, making it suitable for space-constrained applications.
  • Temperature Range: The device is specified over the extended industrial temperature range of -40°C to +105°C, ensuring reliable performance in harsh environments.

Performance Advantages

The AD5328BRUZ is designed with a focus on performance and reliability. Its high resolution and multi-channel capabilities are complemented by a fast settling time and low glitch energy, which minimizes the impact of voltage changes on the output signal. Additionally, the device includes a power-down feature that reduces the current consumption to 200 nA at 3 V, further extending its suitability for battery-operated devices.

Applications

With its robust feature set, the AD5328BRUZ can be utilized in a diverse array of applications. It is particularly well-suited for:

  • Programmable logic controllers (PLCs)
  • Data acquisition systems
  • Digital signal processing
  • Automated test equipment
  • Portable battery-powered instruments

In summary, the AD5328BRUZ from Analog Devices Inc. offers a compelling combination of performance, versatility, and reliability, making it a top choice for designers seeking a multi-channel DAC solution.
