The AD5532ABCZ-5 is a high-performance, 32-channel, 14-bit digital-to-analog converter (DAC) module produced by the renowned Analog Devices Inc. This precision DAC component is designed to offer exceptional accuracy and stability, making it an ideal choice for a wide array of applications that require multiple output channels and high-resolution analog output, such as automated test equipment, data acquisition systems, and industrial control systems.

Key Features

• Multi-Channel Output: Equipped with 32 independent DAC channels, the AD5532ABCZ-5 allows for simultaneous control of multiple analog outputs, enhancing system flexibility and performance.
• High Resolution: With a 14-bit resolution, this DAC provides precise control over output voltages, enabling fine adjustments and high accuracy in signal generation.
• Serial Interface: The inclusion of a 3-wire serial interface ensures easy communication with microcontrollers or digital signal processors, simplifying system integration and data transfer.
• On-Chip Output Amplifiers: On-chip output amplifiers for each channel facilitate direct connection to the load, reducing the need for external components and saving board space.
• Output Range: The AD5532ABCZ-5 offers a selectable output range, providing versatility for various application requirements.

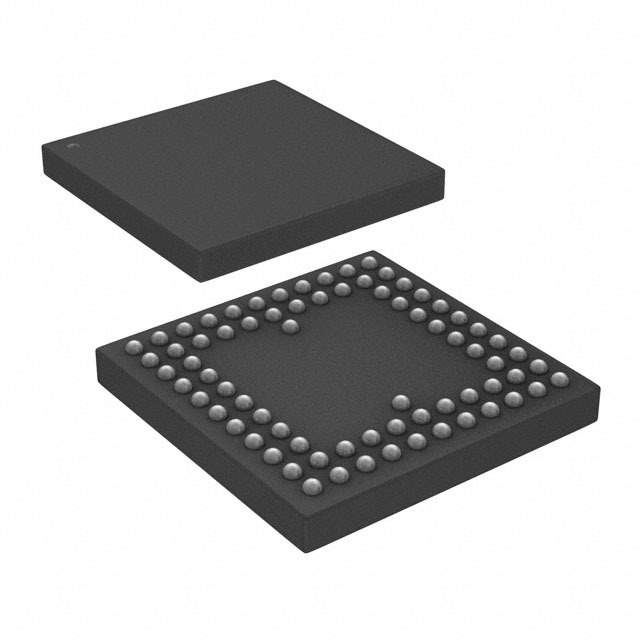

• Compact Package: Housed in a compact 64-lead chip scale package (CSP), the device minimizes the footprint on printed circuit boards, making it suitable for space-constrained applications.

Applications

The versatile nature of the AD5532ABCZ-5 allows it to be utilized in numerous high-tech sectors. Primarily, it is employed in automated test equipment, where multiple precision voltage outputs are required for testing and calibration of electronic components. Additionally, its precision and multi-channel capabilities make it an excellent choice for complex industrial control systems, where numerous actuators or sensors are managed simultaneously. Data acquisition systems also benefit from the high resolution and stability of the AD5532ABCZ-5, ensuring accurate measurement and control in scientific and engineering applications.

Overall, the AD5532ABCZ-5 by Analog Devices Inc. stands out as a robust and reliable DAC solution for designers looking to incorporate multiple high-precision analog outputs in their systems.
