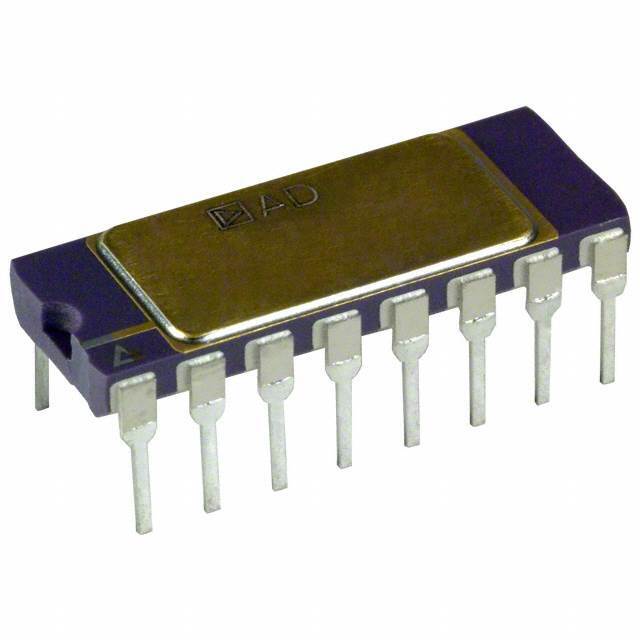

The AD624AD is a high precision instrumentation amplifier designed by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This amplifier is renowned for its exceptional accuracy and versatility, making it an ideal choice for a wide range of applications, including medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features:

• Exceptional Precision: The AD624AD offers outstanding linearity with a nonlinearity of less than 0.001% at G = 100. Its precision is further enhanced by a low input bias current of 25 nA max, and a low offset voltage of 50 µV max, ensuring accurate signal amplification.
• High Gain Accuracy: With gain set by a single external resistor, this amplifier provides high gain accuracy and can be configured for gains of 1 to 10,000. The gain is highly stable over time and temperature variations, which is vital for critical measurement applications.
• Low Noise: The AD624AD features a low noise level of 9 nV/√Hz at 1 kHz, which makes it suitable for applications requiring a high signal-to-noise ratio.
• Flexible Power Supply: It operates on a dual power supply ranging from ±5 V to ±15 V, or a single supply with reference pin capability, offering flexibility in various system designs.
• Robust Output: The output of the AD624AD is capable of driving heavy loads, which allows for direct connection to chart recorders, A/D converters, and other equipment without additional buffering.

Applications:

The AD624AD is used in applications that require highly accurate signal processing. It is particularly well-suited for:

• Medical diagnostic equipment such as ECG and EEG monitors.
• Strain gauge transducers, where precision weight and force measurements are essential.
• Industrial process control systems, which demand reliable and precise signal conditioning.
• High-resolution data acquisition systems for scientific research.

With its combination of accuracy, low noise, and ease of use, the AD624AD from Analog Devices Inc. sets the standard for instrumentation amplifiers in the industry. Its robust design ensures reliable performance in the most demanding environments.
