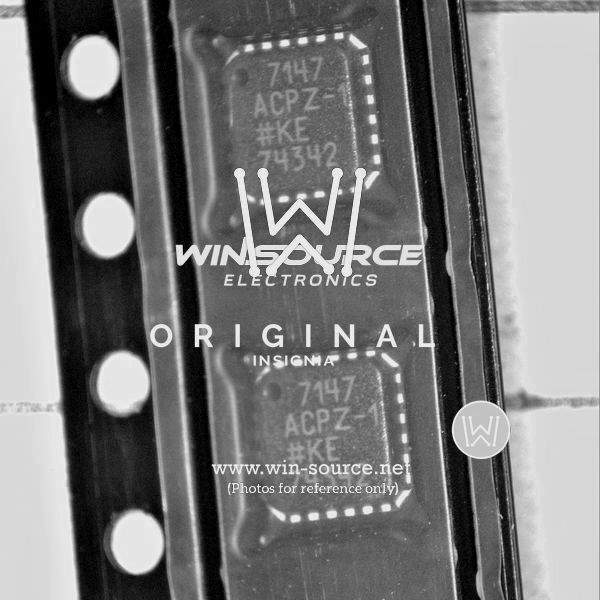

Product Overview: AD7147ACPZ-1500RL7

The AD7147ACPZ-1500RL7 is an innovative capacitance-to-digital converter (CDC) with an auto-calibration feature, manufactured by Analog Devices Inc. This high-performance component is designed to facilitate the creation of sophisticated touch interfaces, making it an ideal choice for a wide range of applications, including consumer electronics, automotive controls, and industrial interfaces.

Key Features

• Capacitance-to-Digital Converter (CDC): The AD7147 is equipped with a 24-bit CDC, offering high-resolution touch sensing capabilities.
• Auto-Calibration: The device includes an automatic calibration function, ensuring consistent performance and sensitivity over time and varying environmental conditions.
• Programmability: It features programmable sensitivity and power modes, allowing designers to optimize the device for specific use cases and power requirements.
• Integrated Noise Shield: The chip comes with an integrated shield driver, which minimizes the impact of external noise, enhancing touch detection reliability.
• Multiple Sensor Inputs: With up to 13 sensor inputs, the AD7147 supports complex touch interfaces and can handle multiple touch points simultaneously.
• Low Power Consumption: Its power-efficient design makes it suitable for battery-operated devices, contributing to longer battery life.
• Compact Packaging: The LFCSP (Lead Frame Chip Scale Package) ensures a small footprint, making it suitable for space-constrained applications.

Applications

• Touchscreen Controls
• Proximity Detection Systems
• Portable Electronic Devices
• Automotive Control Panels
• Industrial Machine Interfaces

The AD7147ACPZ-1500RL7 stands out with its adaptive threshold and sensitivity features, which allow for dynamic adjustment to the touch sensor's environment. This results in a robust and reliable user interface that can withstand moisture, dirt, and other contaminants that typically affect touch performance.

Analog Devices Inc. is known for their precision engineering and the AD7147ACPZ-1500RL7 is no exception, providing designers with a versatile and reliable solution for integrating advanced touch sensing functionality into their products.
