Analog Devices Inc. AD7391ARU Digital-to-Analog Converter

The AD7391ARU is a high-performance, low-power, 10-bit digital-to-analog converter (DAC) produced by the renowned semiconductor manufacturer Analog Devices Inc. This precision DAC is designed to offer a perfect blend of accuracy and speed, making it an ideal choice for a wide array of applications including process control systems, data acquisition systems, and digital signal processing.

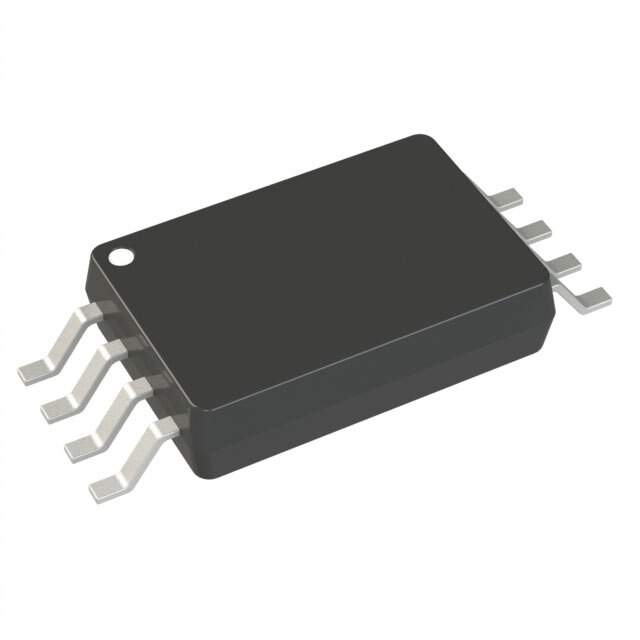

Encased in a compact TSSOP-16 package, the AD7391ARU operates on a single 2.7V to 5.5V power supply, which allows for flexible integration into various circuit designs. Its low power consumption is particularly beneficial for portable and battery-powered devices, ensuring minimal impact on the overall system power budget.

One of the key features of the AD7391ARU is its versatile interface options. It is equipped with a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. This feature provides designers with the flexibility to easily incorporate the DAC into their existing digital systems without the need for extensive redesigns.

The AD7391ARU also boasts a fast settling time and a precise voltage output, which is essential for applications that require accurate and rapid conversion from digital to analog signals. The DAC's output is buffered, which simplifies the design by removing the need for an external op-amp and reduces the complexity of the output stage.

Moreover, the device includes a power-down feature that reduces the current consumption to a mere 0.2 µA, further enhancing its suitability for power-sensitive applications. This power-down mode can be easily activated through the serial interface, allowing for efficient power management in systems that are not always active.

In summary, the AD7391ARU from Analog Devices Inc. is a reliable and efficient solution for designers looking to implement a DAC with excellent performance characteristics. Its ease of use, low power consumption, and compatibility with multiple serial interfaces make it a versatile component for a diverse range of electronic products.

For detailed specifications and application guidance, designers and engineers are encouraged to consult the datasheet and technical resources provided by Analog Devices Inc.
