Product Overview: AD7654ASTZ

The AD7654ASTZ is a high-performance, dual 16-bit analog-to-digital converter (ADC) from Analog Devices Inc., a renowned leader in precision high-performance data conversion technology. This ADC is designed to operate with a differential input and dual simultaneous sampling, making it an ideal choice for a wide range of applications that require high-speed data acquisition, such as medical imaging, communication systems, and industrial process control.

Key Features

• Dual 16-bit ADC: The AD7654ASTZ features two independent ADCs that provide 16-bit resolution with no missing codes, ensuring high precision in data conversion.
• Simultaneous Sampling: With dual simultaneous sampling, this device captures real-time signals accurately, which is critical for phase-sensitive applications.
• High Throughput: The device boasts a high throughput rate of 250 kSPS (kilo samples per second), enabling rapid data acquisition and processing.
• Wide Input Bandwidth: The ADC supports a wide input bandwidth, which allows a variety of signals to be digitized without degradation of the input signal.
• Flexible Power Supply: It operates from a 5V power supply for the analog circuit and a separate 1.8V to 5.25V supply for the digital interface, providing flexibility in system power design.
• Low Power Consumption: The AD7654ASTZ is designed for low power operation, which is essential for portable and remote sensing applications.
• Interface Options: It includes a parallel interface that is compatible with microprocessors and DSPs, facilitating easy integration into digital systems.

Applications

The versatility of the AD7654ASTZ allows it to be used in various demanding applications. Some of the typical applications include:

• Industrial Data Acquisition Systems
• Medical Imaging Equipment
• Instrumentation and Control Systems
• Communications Infrastructure
• Power Line Monitoring

Quality and Reliability

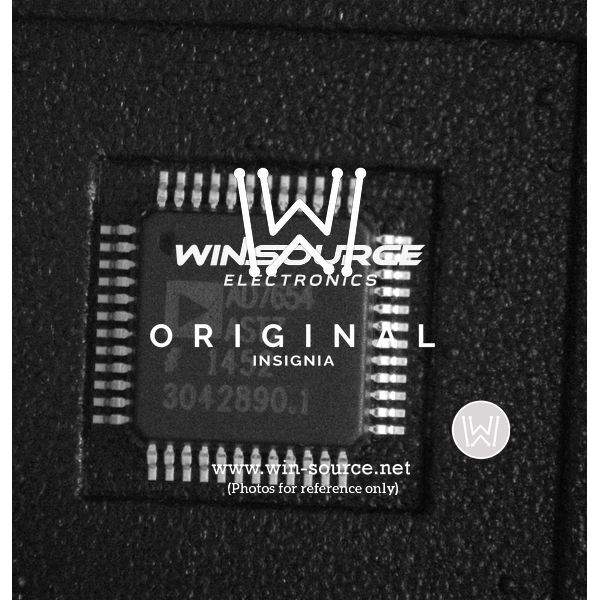

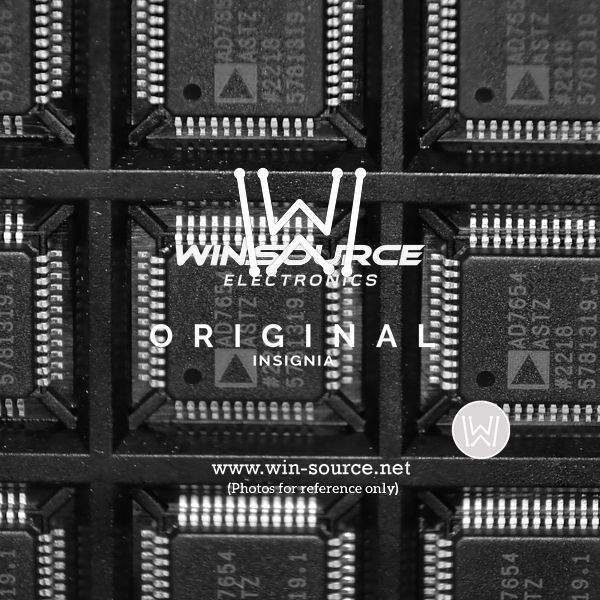

Analog Devices Inc. is committed to providing high-quality products, and the AD7654ASTZ is no exception. It is available in a 48-lead LQFP (Low Profile Quad Flat Package) that ensures robustness and reliability for long-term operation in diverse environments.
