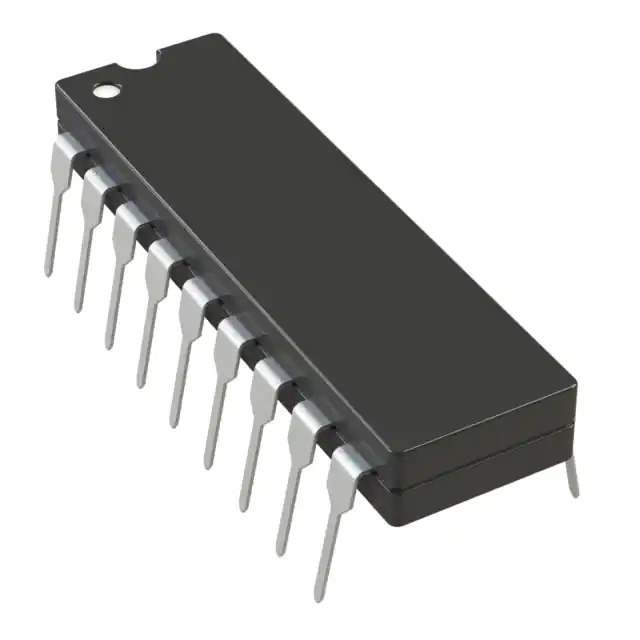

The AD7703CN is a high-performance, 16-bit sigma-delta analog-to-digital converter (ADC) produced by Analog Devices Inc., a leader in precision signal processing technology. This ADC is designed for direct interfacing to low-level sensor outputs, providing a high degree of accuracy and noise rejection in measurement applications.

Key Features:

• Resolution: The AD7703CN offers a 16-bit resolution, ensuring high precision in digital output, making it suitable for applications requiring fine detail in measurement.
• Input Type: It features a differential input, which is ideal for reducing common-mode noise and enhancing the quality of the signal being converted.
• Reference Voltage: An on-chip 2.5V reference voltage provides a stable baseline for conversions, although an external reference can also be used if desired.
• Programmable Gain: The device includes a programmable gain amplifier (PGA), allowing users to amplify low-level input signals for improved accuracy.
• Data Interface: The AD7703CN supports a serial digital interface, facilitating easy integration with microprocessors and digital systems.
• Power Supply: It operates on a single 5V power supply, simplifying power management in embedded systems.

Applications:

The AD7703CN is versatile and can be used in various applications where accurate signal processing is critical. These include:

• Industrial process control
• Weight scales
• Pressure measurement systems
• Medical instrumentation
• Scientific analysis equipment

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality, and the AD7703CN is no exception. It is built to meet high standards, ensuring reliability and performance consistency even in demanding environments.

For more detailed specifications and application notes, or to order the AD7703CN, please visit the official product page or contact Analog Devices Inc. directly.
