The AD7864AS-3 is a high-performance, quad-channel, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc, a renowned leader in the semiconductor industry. Designed to cater to applications that demand low power consumption and high throughput rates, this ADC is an ideal choice for a wide array of applications, including data acquisition systems, medical instruments, and industrial control processes.

Key Features:

• Precision: With its 12-bit resolution, the AD7864AS-3 ensures accurate digitization of analog signals, providing precise data for critical applications.
• Quad-Channel Input: The four independent ADC channels allow for simultaneous sampling of multiple signals, which is essential for advanced multi-channel systems.
• High Throughput Rate: It offers a conversion rate of up to 833 kSPS (kilo-samples per second), enabling real-time data processing and fast system response times.
• Low Power Consumption: The device operates efficiently with a typical power consumption of only 80 mW, making it suitable for battery-powered or energy-sensitive applications.
• Flexible Power Supply: The AD7864AS-3 operates on a dual power supply ranging from +2.7 V to +5.25 V, accommodating various system design requirements.
• Serial Interface: It incorporates a high-speed serial interface that simplifies the connection to microprocessors and DSPs, reducing system complexity and saving board space.

Applications:

• Data Acquisition Systems
• Medical Imaging
• Instrumentation
• Industrial Control Systems
• Battery-Powered Devices

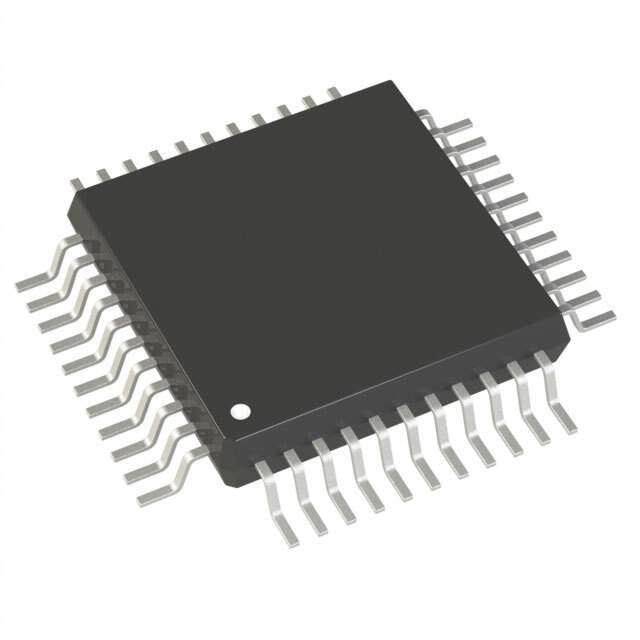

The AD7864AS-3 is packaged in a 44-lead MQFP (Metric Quad Flat Pack) and is specified for operation over the industrial temperature range of -40°C to +85°C. Its robust design ensures reliable performance in challenging environments, and its advanced features make it a versatile component for precision measurement and control tasks.

With the AD7864AS-3, Analog Devices Inc. continues to deliver cutting-edge technology that enhances the accuracy and efficiency of electronic systems worldwide.
