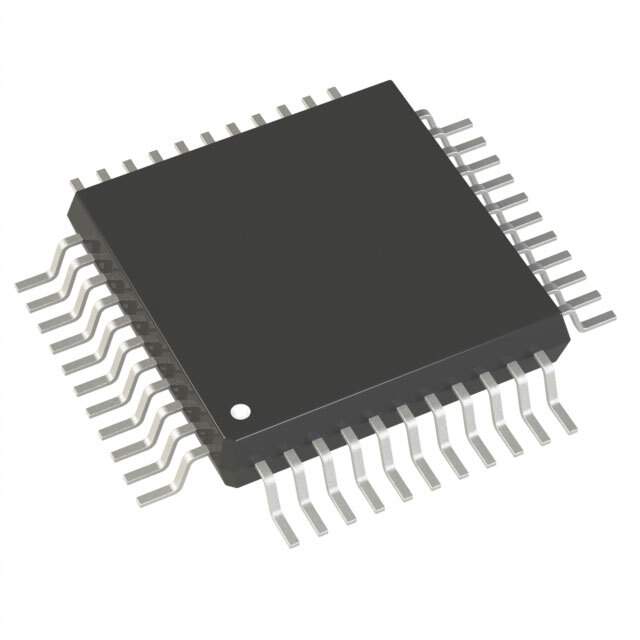

AD7864ASZ-2

Part No AD7864ASZ-2
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 4-Channel, Simultaneous Sampling, High Speed, 12-Bit ADC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Tray
Resolution 12
Sampling Rate 520k
Number of Inputs 4
Input Type Single Ended
Data Interface Parallel
Configuration S/H-MUX-ADC
Number of Converters 1
Architecture SAR
Reference Type External, Internal
Operating Supply Voltage 5V
Voltage - Supply, Digital 5V
Features Simultaneous Sampling
Operating Temperature Range -40°C ~ 85°C
Package 44-QFP
Manufacturer Package 44-MQFP (10x10)
Manufacturer Homepage www.analog.com
Win Source Part Number 729407-AD7864ASZ-2
Popularity Medium
Supply and Demand Status Limited
Family Name AD7864
Introduction Date January 30, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian AD7864ASZ-2 CAD Model

Description

AD7864ASZ-2: A High-Speed, Low-Power, 4-Channel ADC from Analog Devices Inc.

The AD7864ASZ-2 is a state-of-the-art analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in high-performance semiconductors. This precision ADC is a part of their extensive range of data conversion products, tailored to meet the rigorous demands of advanced electronic systems.

Key Features:

  • Four Simultaneous Sampling Channels: The AD7864ASZ-2 is equipped with four analog input channels that can sample simultaneously, making it ideal for applications requiring multi-channel data acquisition.
  • 12-bit Resolution: With 12-bit resolution, this ADC offers fine granularity in digital output, providing accurate and detailed conversion from analog signals to digital data.
  • 2.2 MSPS Throughput Rate: The device boasts a high-speed throughput rate of 2.2 megasamples per second (MSPS), allowing for rapid data processing and real-time system responsiveness.
  • Low Power Consumption: Designed for power-sensitive applications, the AD7864ASZ-2 maintains low power consumption, with typical operating currents as low as 8 mA.
  • Single 5 V Supply: The ADC operates on a single 5 V power supply, simplifying power management in system design.
  • Flexible Input Ranges: The input voltage range is adjustable, supporting ±10 V, ±5 V, 0 V to +10 V, and 0 V to +5 V input ranges, providing versatility across different signal types and amplitudes.
  • Serial Interface: It features a high-speed, serial interface that is compatible with microprocessors and digital signal processors (DSPs), ensuring easy integration into digital systems.

Applications:

The AD7864ASZ-2 is well-suited for a wide array of applications, including:

  • Industrial control systems
  • Data acquisition systems
  • Medical instrumentation
  • Scientific analysis equipment
  • Communications systems

With its combination of high-speed, precision, and low power operation, the AD7864ASZ-2 from Analog Devices Inc. is an excellent choice for designers who require a reliable and efficient multi-channel ADC solution.
