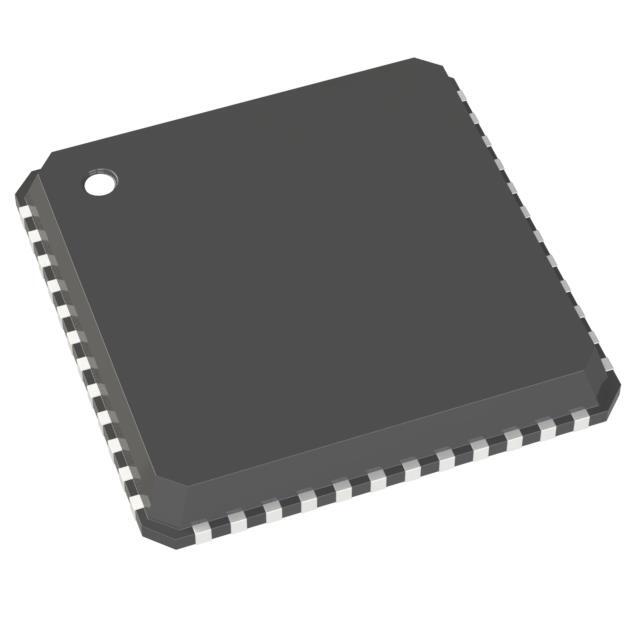

Same model may have multiple batches, images only for reference.

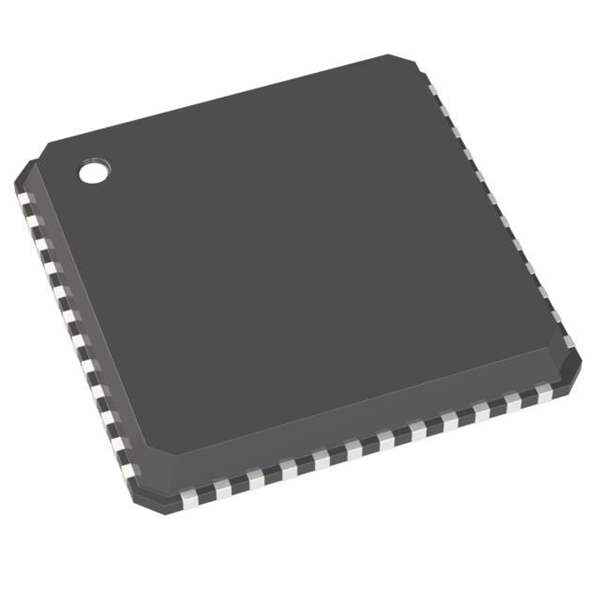

AD7949SCPZ-EP-RL7 Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AD7949SCPZ-EP-RL7

Part No AD7949SCPZ-EP-RL7
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 14BIT SAR 20LFCSP
Datasheet
AD7949SCPZ-EP-RL7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Bits 14
Sampling Rate (Per Second) 250k
Number of Inputs 8
Input Type Differential, Pseudo-Differential, Single Ended
Data Interface SPI, DSP
Configuration MUX-S/H-ADC
Ratio - S/H 1:1
Number of A/D Converters 1
Architecture SAR
Reference Type External, Internal
Voltage - Supply, Analog 2.3V ~ 5.5V
Voltage - Supply, Digital 2.3V ~ 5.5V
Features Temperature Sensor
Temperature Range - Operating -55°C ~ 125°C
Case / Package 20-WFQFN Exposed Pad, CSP
Supplier Device Package 20-LFCSP (4x4)
Mounting Type Surface Mount
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1496756-AD7949SCPZ-EP-RL7
Ultra Librarian 3D Model Ultra Librarian AD7949SCPZ-EP-RL7 CAD Model

Description

N
