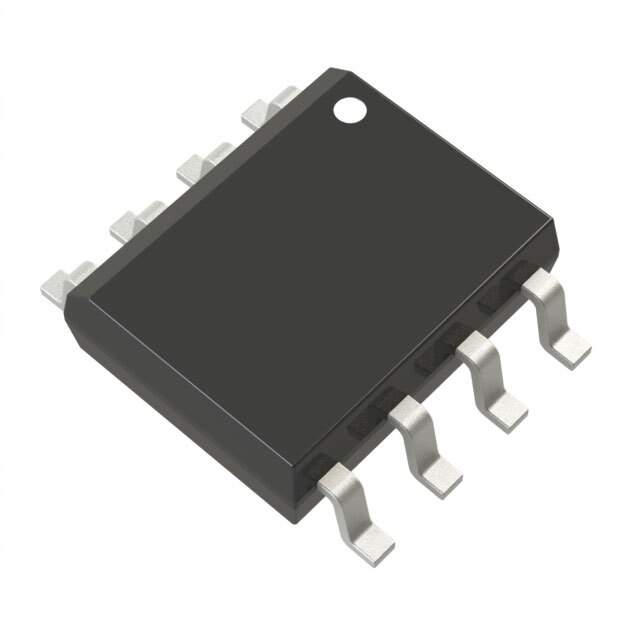

The AD8225ARZ is a high-performance instrumentation amplifier designed by Analog Devices Inc. This device is engineered to offer excellent accuracy and ease of use. With its rail-to-rail output and low offset voltage, the AD8225ARZ is ideally suited for applications requiring precise signal amplification over a wide input range.

Key Features

• Rail-to-Rail Output: The AD8225ARZ provides a wide output swing, extending to both supply rails. This feature ensures maximum dynamic range, making it perfect for single-supply applications as well as dual supplies ranging from ±2.3 V to ±18 V.
• High Gain Accuracy: With a gain set by a single external resistor (G = 1 to 10,000), the device offers excellent gain accuracy and gain drift, ensuring signal integrity.
• Low Offset Voltage: The low input offset voltage minimizes errors in signal processing, making it suitable for precision applications.
• Low Noise: The AD8225ARZ boasts a low noise density, making it an ideal choice for applications that demand a high signal-to-noise ratio.
• Easy to Use: The minimal external components requirement simplifies circuit design and reduces board space.

Applications

The versatility of the AD8225ARZ allows it to be used in a broad range of applications. It is particularly well-suited for:

• Medical instrumentation such as ECG and EEG monitors
• Industrial process controls
• Data acquisition systems
• Battery-powered and portable devices
• Strain gages and transducer interfaces

Product Specifications

For detailed information, including datasheets, technical documentation, and support, visit the Analog Devices Inc. website or contact their support team. The AD8225ARZ's combination of features makes it a top choice for professional-grade instrumentation amplification needs.
