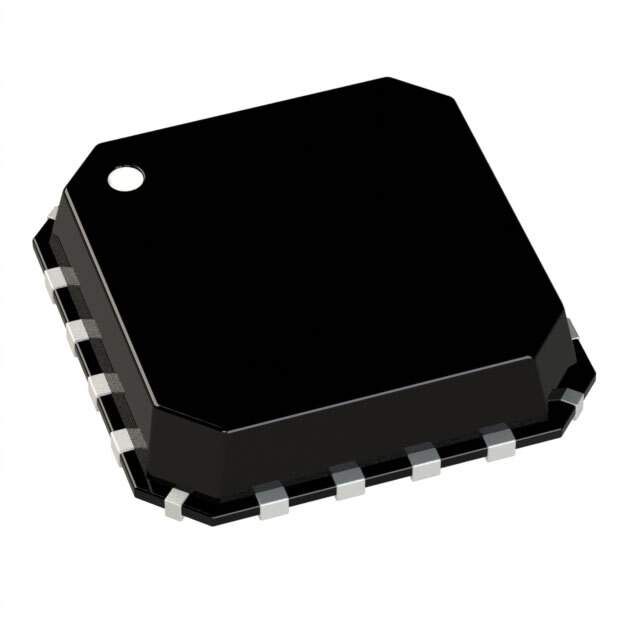

Product Overview: AD8295ACPZ-R7

The AD8295ACPZ-R7 from Analog Devices Inc. is a high-performance, precision instrumentation amplifier in a compact LFCSP package. This device is designed to offer a perfect balance between accuracy and ease of use, making it an ideal choice for a wide range of applications, including medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features

• Integrated Gain Resistors: The AD8295ACPZ-R7 features precision-matched resistors that provide fixed gains of 1, 2, 4, or 8, enabling accurate and stable measurements without the need for external components.
• Low Offset Voltage: With a low input offset voltage, this amplifier ensures high accuracy in signal amplification, making it suitable for applications requiring precise signal processing.
• Single Supply Operation: Capable of operating from a single 5 V supply, the AD8295ACPZ-R7 simplifies power supply design and is ideal for portable and battery-powered applications.
• Low Noise: The device boasts low noise performance, which is critical in applications where signal integrity is paramount.
• High Common-Mode Rejection Ratio (CMRR): With an excellent CMRR, the amplifier can reject common-mode signals such as noise and interference, enhancing the quality of the output signal.
• Rail-to-Rail Output: The rail-to-rail output stage provides increased dynamic range, which is especially useful when operating at lower supply voltages.

Applications

The AD8295ACPZ-R7 is versatile and can be used in a variety of applications. Its precision and low noise characteristics make it suitable for:

• Medical instrumentation such as ECG and EEG monitors
• Industrial process controls, including sensor signal conditioning
• Data acquisition systems requiring high accuracy
• Battery-powered devices where power efficiency is crucial

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD8295ACPZ-R7 is no exception. It is built to meet the highest standards of reliability and performance, ensuring that it can withstand the demands of the most challenging environments.

With its combination of precision, low power consumption, and compact size, the AD8295ACPZ-R7 from Analog Devices Inc. stands out as a robust solution for precision amplification needs.
