Product Overview: AD9233BCPZRL7-105 by Analog Devices Inc.

The AD9233BCPZRL7-105 is a high-performance, 12-bit analog-to-digital converter (ADC) designed and manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This ADC operates at a 105 MSPS (mega-samples per second) conversion rate, making it an excellent choice for applications that require high-speed data acquisition, such as medical imaging, communications, and instrumentation.

Key Features

• Resolution and Speed: The device boasts a 12-bit resolution, providing fine detail in signal representation, combined with a fast sampling rate of 105 MSPS, which ensures that rapid changes in the input signal are accurately captured.
• Input Range: It features a flexible input range, accommodating various signal types, and can be configured to match the amplitude of the input signal for optimal performance.
• Low Power Consumption: Designed with power efficiency in mind, the AD9233BCPZRL7-105 consumes low power, which is critical for portable and battery-powered applications.

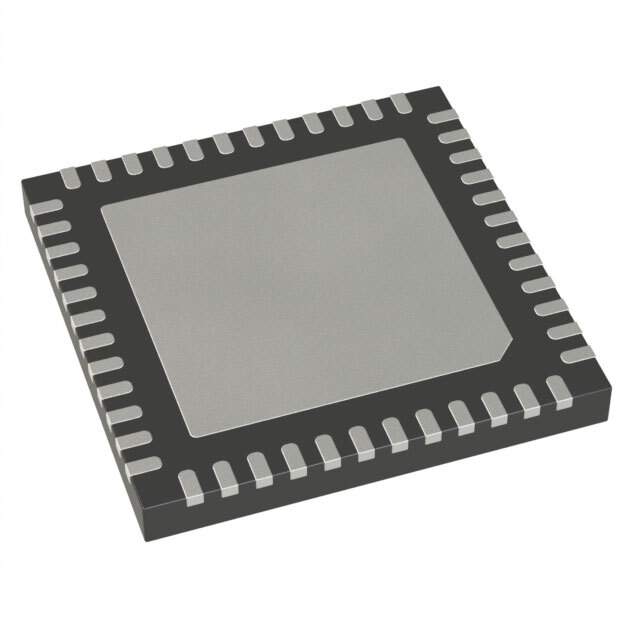

• Package: The product comes in a compact LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications.
• Interface: It includes a high-speed serial interface, enabling easy integration with digital signal processors (DSPs) and field-programmable gate arrays (FPGAs).

Applications

The AD9233BCPZRL7-105 is versatile and can be used in a variety of applications, including:

• Medical Imaging Systems
• Communications Infrastructure
• Data Acquisition Systems
• Test and Measurement Equipment
• Radar and Satellite Antenna Systems

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD9233BCPZRL7-105 is no exception. It is built to meet the stringent requirements of industrial and commercial applications, ensuring long-term performance and stability.

Conclusion

In summary, the AD9233BCPZRL7-105 from Analog Devices Inc. is a robust, high-speed ADC that offers excellent performance for a wide range of applications. Its combination of speed, resolution, and low power consumption, packaged in a small form factor, makes it a compelling choice for designers looking to enhance their systems with precise and efficient data conversion capabilities.
