Product Overview: AD9271BSVZ-40 by Analog Devices Inc.

The AD9271BSVZ-40 is a highly integrated, octal-channel, ultrasound receiver from Analog Devices Inc. This advanced component is designed to cater to high-performance applications in medical ultrasound imaging. It combines eight channels of low noise preamplifiers (LNAs), variable gain amplifiers (VGAs), anti-aliasing filters (AAF), and 14-bit analog-to-digital converters (ADCs) to provide a comprehensive solution for ultrasound systems.

The device operates at a speed grade of 40 MSPS (mega samples per second), offering excellent dynamic range and sensitivity necessary for high-resolution imaging. The integration of multiple channels into a single chip not only simplifies the design of complex ultrasound systems but also reduces the footprint, power consumption, and overall system cost.

Key Features:

• Eight Integrated Channels: This feature allows for simultaneous data acquisition from multiple transducers, enabling faster scanning and improved image quality.
• Low Noise Preamplifiers: The LNAs provide a low noise figure, which is critical for detecting weak ultrasound signals.
• Programmable Gain: The VGAs offer a programmable gain range, giving designers the flexibility to optimize the system for different imaging scenarios.
• Integrated Anti-Aliasing Filters: The AAFs reduce signal aliasing and improve the overall signal integrity, which is vital for accurate image reconstruction.
• High-Speed ADCs: The 14-bit ADCs ensure precise digitization of analog signals, preserving the fine details necessary for medical diagnostics.

Applications:

• Medical Ultrasound Imaging
• Portable and Stationary Ultrasound Systems
• Multi-channel Data Acquisition Systems

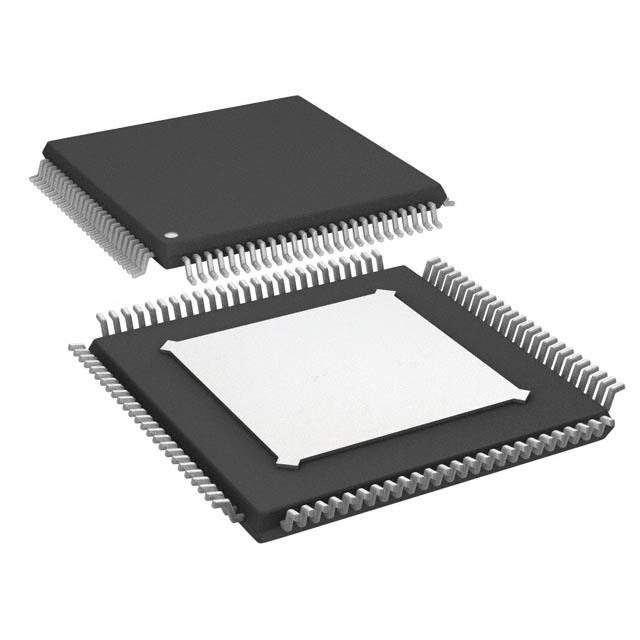

The AD9271BSVZ-40 is available in a compact 100-lead TQFP (thin quad flat package), making it suitable for space-constrained applications. With its robust design and integrated features, it stands out as a top choice for developers and engineers looking to advance the capabilities of ultrasound technology.
