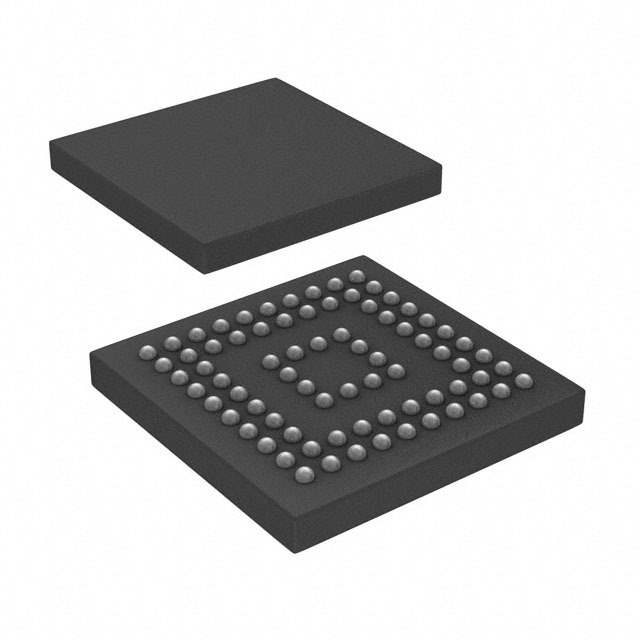

The AD9889BBBCZ-80 is a high-performance, multimedia, High-Definition Multimedia Interface (HDMI) transmitter from Analog Devices Inc., designed to deliver exceptional video and audio quality. It is a compact, integrated solution that simplifies the design and implementation of HDMI interfaces in a variety of applications, including home theater systems, digital signage, and professional audio/video equipment.

Key Features

• HDMI 1.3 Support: The device is compliant with HDMI 1.3 specifications, ensuring compatibility with the latest multimedia devices and content.
• High Data Rates: With support for up to 80 MHz pixel clock rate, the AD9889BBBCZ-80 is capable of transmitting HD video up to 1080p resolution.
• Deep Color Technology: It supports 12-bit deep color per channel, allowing for a broader spectrum of colors and more detailed images.
• Integrated Audio Support: The transmitter includes an I2S audio interface for transmitting high-quality digital audio, supporting up to 7.1 channels of surround sound.
• EDID Management: The device provides an Enhanced Display Identification Data (EDID) management feature, enabling seamless communication between the video source and display.
• Low Power Consumption: Designed for energy efficiency, the AD9889BBBCZ-80 minimizes power consumption, making it ideal for portable and battery-powered devices.
• Compact Package: Offered in a space-saving, surface-mount package, this transmitter is suitable for use in space-constrained applications.

Applications

The versatility of the AD9889BBBCZ-80 allows it to be utilized in a wide range of products. Its high-speed digital transmission capabilities make it perfect for:

• High-definition televisions (HDTVs)
• Audio/Video receivers
• Blu-ray and DVD players
• Game consoles
• Personal computers and laptops
• Professional video editing and camera equipment

Conclusion

The AD9889BBBCZ-80 by Analog Devices Inc. represents a state-of-the-art HDMI transmitter solution that offers robust video and audio performance for a superior multimedia experience. Its comprehensive feature set and compliance with HDMI 1.3 specifications ensure that it meets the demands of the latest digital media applications, making it an excellent choice for designers and manufacturers seeking to enhance their products with high-quality HDMI connectivity.
