Analog Devices Inc. ADF7023-JBCPZ Transceiver IC

The ADF7023-JBCPZ from Analog Devices Inc. is a high performance, low power, transceiver IC designed for robust and efficient wireless communication. This versatile integrated circuit is particularly suitable for the industrial, scientific, and medical (ISM) bands and can be employed in a variety of applications such as automatic meter reading, home and building automation, wireless sensor networks, and industrial control systems.

Operating in the sub-GHz frequency bands, the ADF7023-JBCPZ ensures a wide reach and deep penetration through obstacles, making it an ideal choice for systems where reliability and range are critical. The transceiver supports various modulation schemes including 2-FSK, GFSK, OOK, and MSK, allowing for flexibility in balancing data rate and link robustness to suit different application needs.

The ADF7023-JBCPZ is designed with power efficiency in mind, featuring a low current consumption in both transmit and receive modes, which is crucial for battery-operated devices. Its automatic power-saving modes further extend battery life, making it an excellent choice for portable and remote applications.

With its integrated packet handler, automatic frequency control, and automatic gain control, the ADF7023-JBCPZ simplifies RF layout and lowers the overall bill of materials. The device also includes an on-chip 8-bit ADC, temperature sensor, and battery voltage monitor, which can be used for telemetry data without the need for additional components.

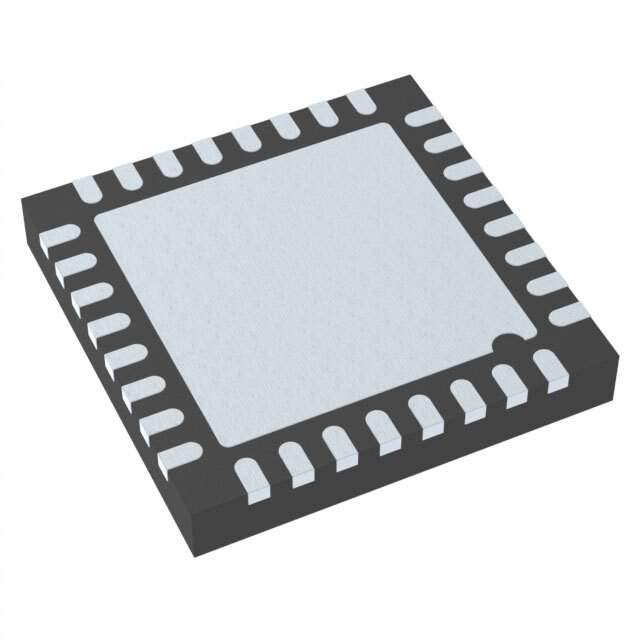

For ease of use, the ADF7023-JBCPZ is supported by a comprehensive development ecosystem, including evaluation boards and software tools, which accelerates the design process and helps bring products to market faster. Its compact 5 x 5 mm LFCSP (lead-frame chip scale package) makes it well-suited for space-constrained applications.

In summary, the ADF7023-JBCPZ from Analog Devices Inc. is a feature-rich, high-performance transceiver IC that offers designers a perfect blend of power efficiency, range, and reliability for their wireless communication needs in a variety of industrial and commercial applications.
