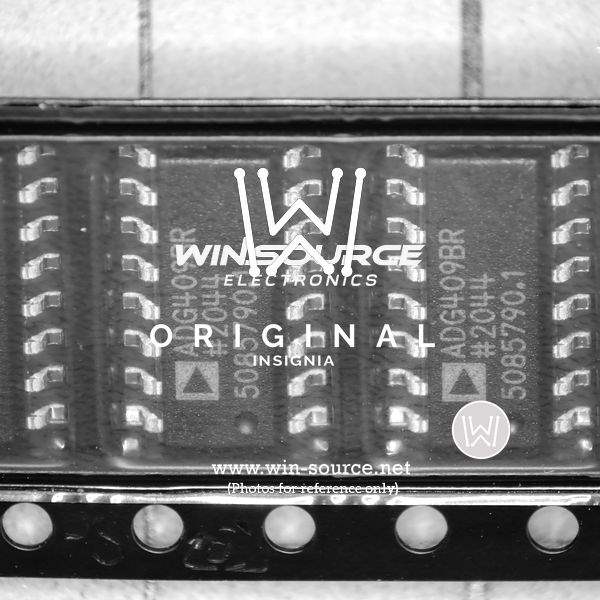

ADG409BR Product Overview

The ADG409BR is a high-performance analog multiplexer from Analog Devices Inc., designed to cater to the precise needs of data acquisition systems, communication systems, and various industrial applications. This monolithic CMOS device features a dual 4-channel configuration, providing users with exceptional signal handling capabilities and flexibility.

Key Features

• Channel Configuration: Dual 4-channel (2x4) multiplexer allows for efficient signal routing.
• Low On Resistance: Typically 45 Ω, ensuring minimal signal attenuation and distortion.
• Single Supply Operation: Operates from a single 15 V supply or dual ±15 V supplies for versatile power options.
• Low Power Consumption: Consumes less than 35 μW of power, making it ideal for power-sensitive applications.
• High Off Isolation: Minimizes crosstalk, ensuring signal integrity is maintained across channels.
• Fast Switching Times: t_ON of 175 ns and t_OFF of 145 ns enable rapid signal switching.
• Extended Temperature Range: Operates over the industrial temperature range of -40°C to +85°C.

Applications

The ADG409BR is a versatile component that can be utilized in a variety of applications where precision and reliability are paramount. Some common applications include:

• Data acquisition systems
• Communication systems
• Test equipment
• Process control systems
• Battery-powered systems
• Sample-and-hold systems

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and the ADG409BR is no exception. The device is meticulously designed and tested to meet the highest standards of performance and reliability. The 'BR' suffix indicates a narrower temperature range version, making it a suitable choice for industrial applications where consistent operation is required despite temperature variations.

Conclusion

With its robust feature set and flexible configuration, the ADG409BR from Analog Devices Inc. stands out as an ideal solution for designers looking to enhance the performance of their systems with a reliable and efficient analog multiplexer. Its compact size and low power consumption make it a smart choice for a wide array of electronic applications.
