The ADG918BRMZ is a high-performance, single-pole, double-throw (SPDT) RF switch from the esteemed manufacturer Analog Devices Inc. This device is designed for a broad range of applications, including RF communications, wireless systems, and instrumentation, where high isolation, low insertion loss, and excellent linearity are critical.

Key Features

• Frequency Range: The ADG918BRMZ operates over a wide frequency range from DC to 4 GHz, making it versatile for various RF applications.
• Insertion Loss: With a low insertion loss of typically 0.3 dB at 1 GHz, this RF switch ensures minimal signal attenuation, preserving signal integrity.
• High Isolation: It offers high isolation (typically 30 dB at 1 GHz), which prevents signal leakage between ports and enhances overall system performance.
• Single Supply Voltage: The device operates from a single 3 V to 5 V power supply, simplifying power management in system designs.
• Positive Control Voltage: The switch uses positive control voltage ranging from 0 V to 5 V, providing compatibility with standard logic levels.
• ESD Protection: It features on-chip electrostatic discharge (ESD) protection, safeguarding the device from static damage during handling and operation.

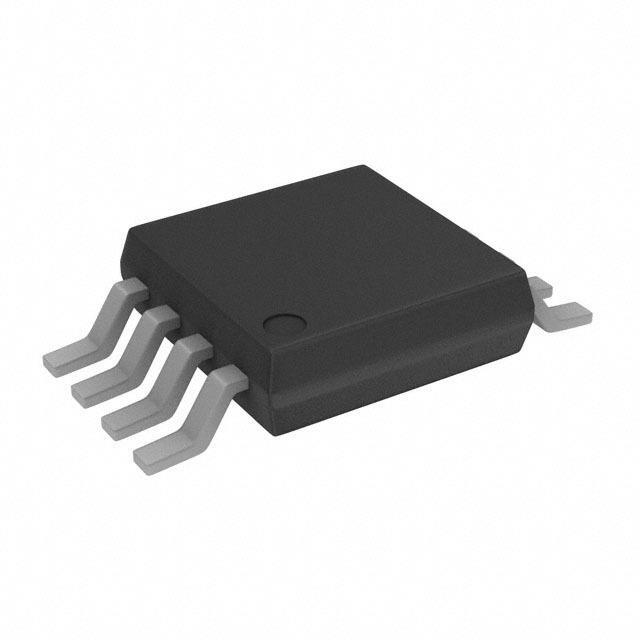

• Small Package: Housed in a compact MSOP (Mini Small Outline Package) with 8 leads, the ADG918BRMZ is suitable for space-constrained applications.

Applications

The ADG918BRMZ is ideal for a variety of applications, including:

• Cellular phones
• Wireless LAN (WLAN) devices
• RFID systems
• Test equipment and instrumentation
• Data acquisition systems
• Communication systems

Conclusion

In summary, the ADG918BRMZ RF switch by Analog Devices Inc. is a high-quality component designed for RF signal routing in various electronic systems. With its low insertion loss, high isolation, and robust performance across a wide frequency range, this device is an excellent choice for designers looking to optimize their RF applications.
