ADL5536ARKZ-R7: High-Performance RF/IF Gain Block

The ADL5536ARKZ-R7 is a versatile, high-performance RF/IF (Radio Frequency/Intermediate Frequency) gain block amplifier designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This component is engineered to deliver consistent, reliable performance in a variety of applications, including wireless infrastructure, broadband, and instrumentation.

Key Features

• Frequency Range: The ADL5536ARKZ-R7 operates over a broad frequency range from 20 MHz to 1 GHz, making it suitable for a wide array of RF and IF applications.
• High Gain: It provides a fixed gain of 20 dB, which enables it to amplify weak signals without the need for additional external components.
• Single Power Supply: The device operates from a single 5 V supply, simplifying power supply design and reducing overall system complexity.
• Excellent Linearity: With an output IP3 of 45 dBm, the amplifier maintains excellent linearity even at high output power levels.
• Low Noise Figure: The ADL5536ARKZ-R7 features a low noise figure of 4.5 dB, ensuring minimal added noise to the signal chain.
• Robust Temperature Performance: The amplifier is designed to perform consistently over an extended temperature range, making it suitable for demanding environments.

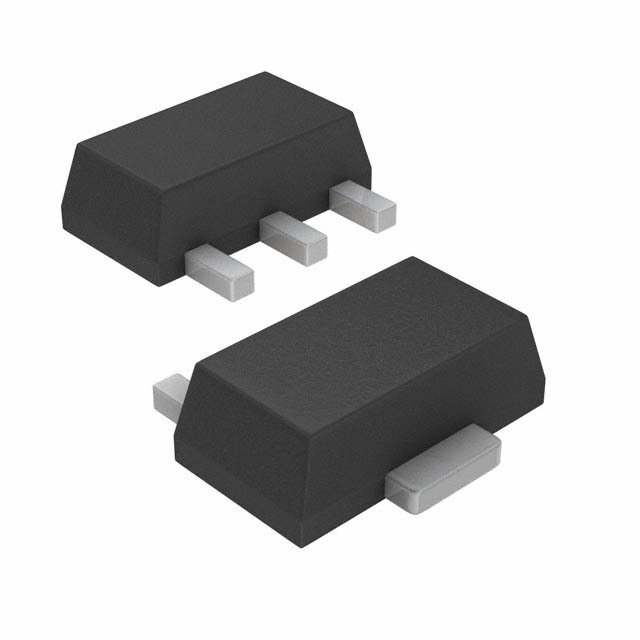

• Package: It comes in a compact, 6-lead SOT-89 package, which is conducive to space-constrained applications.

Applications

The ADL5536ARKZ-R7 is ideal for use in a variety of applications, including:

• Wireless infrastructure (such as cellular base stations, repeaters, and femtocells)
• Broadband wireless access systems
• Public safety radios
• ISM band applications
• RF/IF gain stages in instrumentation

With its combination of high gain, broad frequency range, and exceptional linearity, the ADL5536ARKZ-R7 from Analog Devices Inc. is a powerful solution for designers seeking to enhance the performance and reliability of their RF and IF signal chains. Its ease of integration and robustness make it an excellent choice for both new designs and upgrades to existing systems.
