The ADN2871ACPZ is a high-performance laser diode driver designed and manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This driver is specifically tailored for direct modulation and high-speed operation of laser diodes used in fiber optic communication systems.

Key Features

• High-Speed Operation: The device is capable of modulation speeds suitable for advanced fiber optic communication, ensuring high data throughput and efficient signaling.
• Automatic Power Control (APC): This feature maintains constant optical power output from the laser diode, compensating for temperature and aging effects.
• Thermal Shutdown: The built-in thermal shutdown feature provides additional protection to the laser diode by turning off the driver in case of excessive temperature rise.
• Single Supply Operation: The ADN2871ACPZ operates from a single supply voltage, simplifying the power supply design and reducing the overall system complexity.
• Compact Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the device minimizes board space and is ideal for densely packed circuit designs.

Applications

The ADN2871ACPZ is well-suited for a variety of high-speed optical communication applications, including:

• Gigabit Ethernet and Fibre Channel transceivers
• SFP (Small Form-factor Pluggable) and SFP+ modules
• DWDM (Dense Wavelength Division Multiplexing) systems
• SONET/SDH and OTN (Optical Transport Network) equipment

Technical Specifications

Below are some of the technical specifications that define the performance of the ADN2871ACPZ:

• Supply Voltage: 3.3 V typical
• Modulation Current: Up to 85 mA

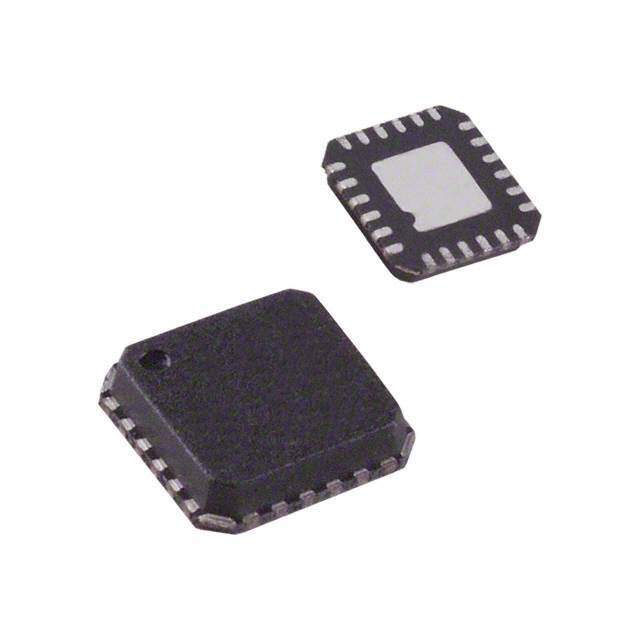

• Package: 24-lead LFCSP (4 mm × 4 mm)

For engineers and designers looking for a reliable and efficient solution to drive laser diodes in high-speed optical networks, the ADN2871ACPZ from Analog Devices Inc. offers a compelling blend of performance, integration, and reliability.
