ADP171AUJZ-R7 Low Dropout Linear Regulator by Analog Devices Inc.

The ADP171AUJZ-R7 is a high-performance, low dropout linear regulator (LDO) designed and manufactured by Analog Devices Inc., a leading company in the semiconductor industry. This LDO is engineered to meet the requirements of modern, power-sensitive applications that demand high efficiency, low quiescent current, and excellent transient performance.

With an input voltage range of 2.2V to 5.5V, the ADP171AUJZ-R7 is versatile and can be used in a variety of systems, from battery-powered devices to industrial controls. It is capable of delivering up to 200mA of output current, which makes it suitable for powering small to medium-sized loads.

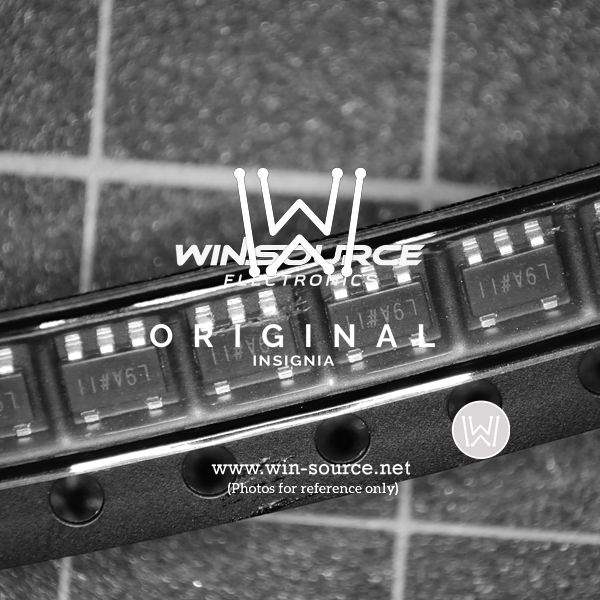

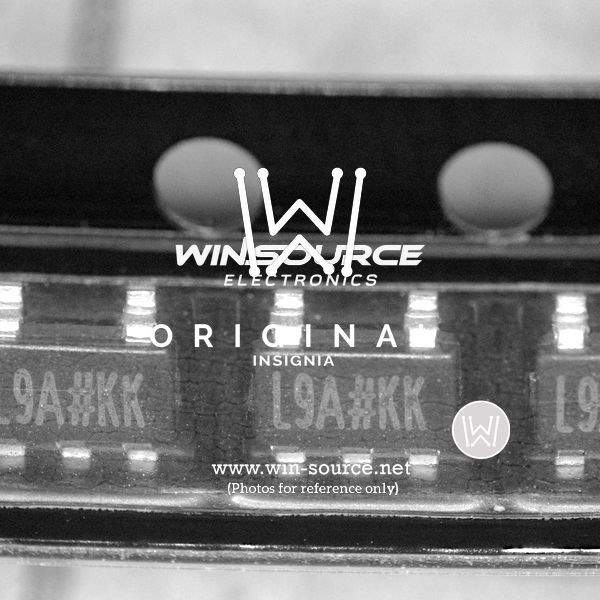

The device comes in a compact TSOT-5 package, ensuring a minimal footprint on the PCB and making it an ideal choice for space-constrained applications. It also features a low quiescent current of 13μA (typical), which is beneficial for extending battery life in portable devices.

One of the key advantages of the ADP171AUJZ-R7 is its low dropout voltage, which enables it to continue providing a stable output even when the input-to-output voltage differential is minimal. This characteristic is particularly important for maintaining consistent performance as battery voltages decline over time.

The LDO is equipped with several protection features to ensure the safety and reliability of the end application. These include over-current protection, thermal overload protection, and a shutdown function that allows the regulator to be turned off when not in use, further reducing power consumption.

Additionally, the ADP171AUJZ-R7 offers excellent load and line regulation, ensuring a stable output voltage despite variations in input voltage or load current. This stability is critical for sensitive electronic components that require a consistent power supply for optimal operation.

In summary, the ADP171AUJZ-R7 from Analog Devices Inc. is a high-quality, low dropout linear regulator that offers a combination of efficiency, low power consumption, and robust protection features. It is an excellent power management solution for a wide range of applications, from personal electronics to industrial systems.
