The ADP1764ACPZ-R7 is a high-performance, low-dropout linear regulator from Analog Devices Inc., designed to deliver a continuous 3 A of output current with a dropout voltage of just 85 mV at 3 A. This regulator is specifically engineered to meet the requirements of high-performance digital devices that demand stable and clean power supply.

Key Features

• High Output Current: Capable of delivering up to 3 A of continuous output current.
• Low Dropout Voltage: Features an ultra-low dropout voltage of 85 mV at full load, reducing power dissipation and improving efficiency.
• Wide Input Voltage Range: Operates with input voltages ranging from 1.6 V to 3.6 V, making it suitable for a variety of applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.55 V to the input voltage minus the dropout voltage, providing flexibility for different circuit requirements.
• High Accuracy: Offers excellent load and line regulation, maintaining a stable output voltage under varying conditions.
• Thermal Protection: Integrated thermal overload protection safeguards the device against excessive temperature and power dissipation.
• Current Limit Protection: Features current limiting to protect the device and the load from damage due to overcurrent conditions.
• Low Quiescent Current: Exhibits low quiescent current, making it ideal for battery-powered devices where power conservation is critical.

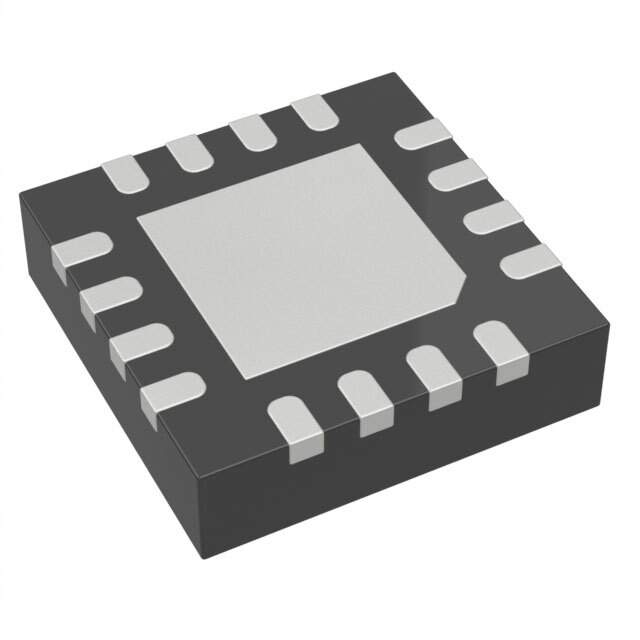

• Package: Available in a compact 16-lead LFCSP (3 mm x 3 mm) package, suitable for space-constrained applications.

Applications

The ADP1764ACPZ-R7 is versatile and can be used in a variety of applications, including:

• FPGA, DSP, and ASIC supplies
• High-performance portable devices
• Networking and communication equipment
• Medical and healthcare systems
• Automotive electronics

Product Summary

Analog Devices Inc.'s ADP1764ACPZ-R7 is a reliable and efficient solution for applications requiring a high-current, adjustable output voltage with excellent line and load regulation. Its low dropout voltage and robust protection features make it an ideal choice for powering sensitive digital circuits in a wide range of industrial, automotive, and consumer products.
